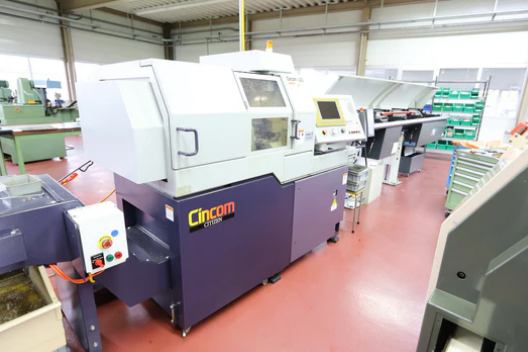

Citizen MITSUBISHI Meldas 635LC 8,000 RPM CINCOM L 20 2 Axis

Control: MITSUBISHI Meldas 635LC
Number of Spindles: 2
Max. Turning Diameter: 20 mm
Maximum Turning Length: 200 mm
Collet Taper: F25
Bar Passage Diameter: 2–26 mm
Max. Bar Length: 3200 mm
Spindle Speeds: 200–8,000 RPM
Back Spindle Speeds: 200–6,000 RPM
Tool-Holders: 3
Number of Tools: 12
Turning Tools: 5
Drilling Tools: 3
Transverse Processing Tools: 4
Counter-Operation Drilling Tools: 3
Voltage: 3x380 V 50 Hz
Spindle Motor: 3.7 kW
Back Spindle Motor: 1.5 kW
Machine Weight: 1800 kg
Overall Dimensions L x W x H: 2050 x 1085 x 1800 mm
Bar Feeder: LNS
Bar Feeder Year: 1998
Bar Feeder Max. Bar Length: 3200 mm
Bar Feeder Diameter: 2–26 mm
Rotative Bush Holder: Synchronous Operation
Parts Catcher
Workpiece Conveyor
Lamp
Chip Conveyor
Coolant System
Set of Collets
Tool Cabinet
Central Lubrication
