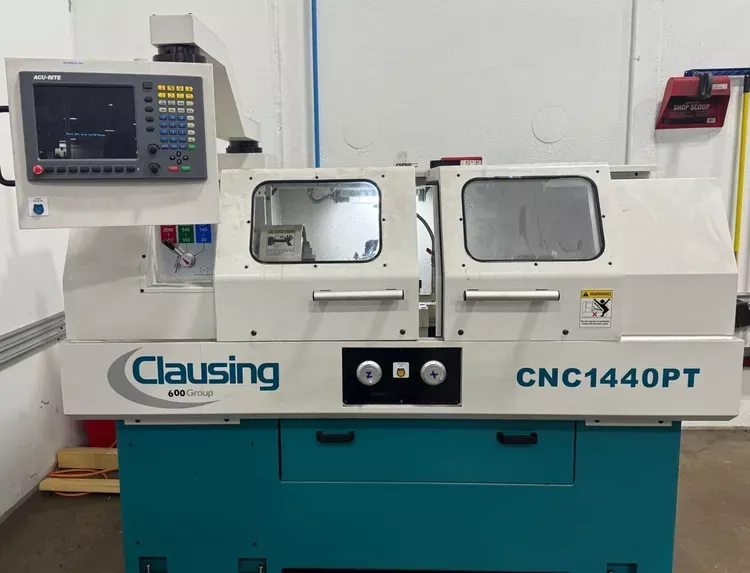

Clausing Acu-Rite TurnPWR 2000 RPM (3 ranges) CNC1440PT 2 Axis

X-axis rapid traverse: 100 IPM
Z-axis rapid traverse: 100 IPM

Control: Acu-Rite TurnPWR
12.1″ color LED display
1.4 GHz Dual Core processor
DRO mode
Thread cycles, recess cycles, turning cycles
Position/drill, line, arc, blend
2D line / 3D line / 3D solid graphics
Program preview and estimated machining time
DXF file import
G-code with graphics support
Auto-save program
Program size limit: 9,999 steps
Parts counter and clock
Coolant system
Communication ports: 2× USB, Ethernet

Swing over bed: 14″
Swing over cross slide: 6.7″
Height of center: 6.8″
Distance between centers: 40″

Spindle nose: D1-4
Spindle bore: 1.5″
Spindle taper: #5MT
Spindle speeds: 30–2000 RPM (3 ranges)
Spindle motor: 5 HP
Minimum full power spindle speed: 70 RPM

X/Z servo motors: 1.6 HP

Tailstock quill diameter: 1.75″
Tailstock quill taper: 3MT
Tailstock quill stroke: 4.75″

3-jaw chuck
Aloris quick change toolpost with holders

Machine footprint: 81.5″ × 53.5″ × 66.3″
Machine weight: 2,750 lbs
