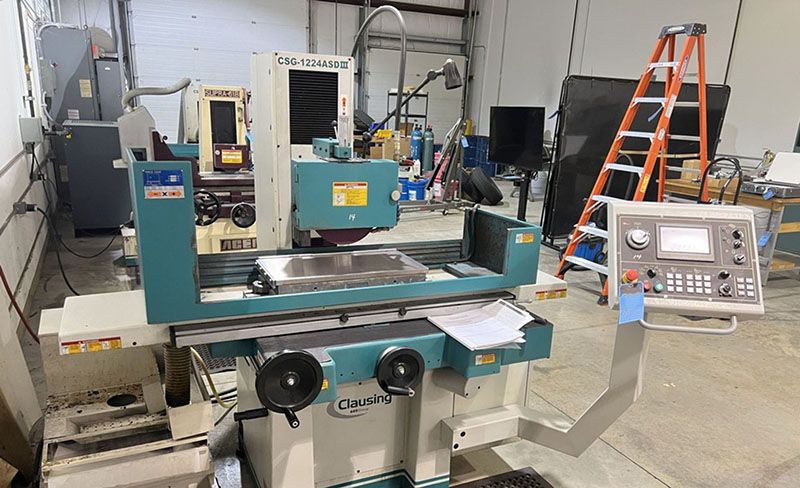

Clausing CSG-1224ASDII

CLAUSING "EQUIPTOP"MODEL: CSG-1224ASDII
NEW: 2018

12" x 24" 3-AXIS AUTOMATIC SURFACE GRINDER
"Delta PLC with 7.2" color screen,
equipped with conversational programming

TABLE SIZE ....................... 12" x 24"
MAX. DISTANCE FROM TABLE TO
SPINDLE CENTERLINE .............. 23"
TABLE SPEED, INFIN. VARIABLE ..... 39.4" TO 984" IPM
MAX. TABLE TRAVEL, HYD. .......... 25.56"
MAX. TABLE TRAVEL, MANUAL ........ 28.75"
AUTO CROSSFEED INCREMENT ......... 0.04" TO 0.75"
AUTO CONSTANT FEEDING SPEED ...... 2.5" - 13" IPM
MAX AUTO CROSSFEDD TRAVEL ........ 12.2"
MAX. CROSSFEED, MANUAL ........... 13.4"
CROSSFEED HANDWHEEL, ONE REV. = .. 0.2"
CROSSFEED HANDWHEEL, GRAD. ....... 0.001"
AUTO INCREMENTAL DOWNFEED ........ 0.00005" TO .0025"
STEP FEED (JOG) .................. 0.00005"
RAPID TRAVERSE RATE .............. 6" IPM
MINIMUM DISPLAY VALUE (REV.) ..... 0.0001"
MINIMUM DISPLAY VALUE (GRAD.) .... 0.0001"
GRINDING SPINDLE DRIVE SPEED ..... 1,750 RPM
STD. GRINING WHEEL ............... 12" x 1.25"W x 3"B


WEIGHT APPROX .................... 5,038 LBS.
APPROX. DIMS. .................. 90"L-R x 61"F-B x 71"H
APPROX. FLOOR SPACE FOR OPS .... 106.3" x 63"D X 73"H
