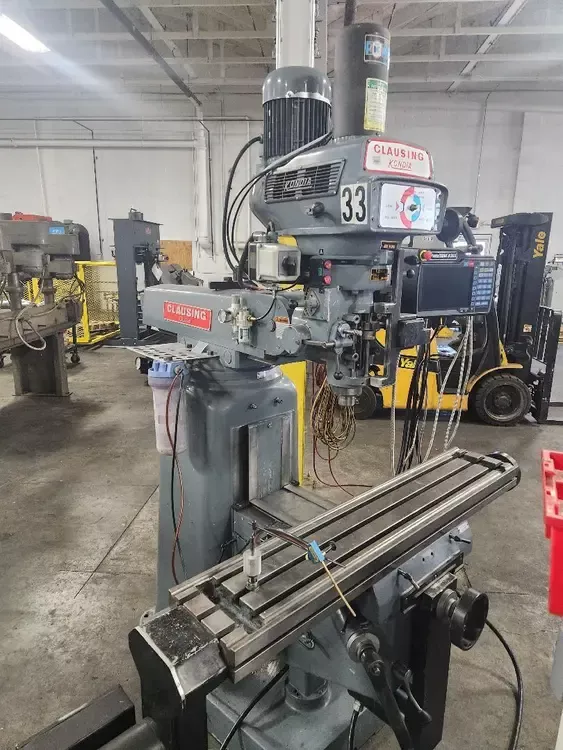

Clausing, Clausing Kondia FV-1 Vertical 4,000 RPM

Table Size 9" x 48"
Spindle Horsepower 3 HP
Spindle Taper R-8
Variable Spindle Speed 60 – 4,000 RPM
Longitudinal (X) Travel 36"
Cross (Y) Travel 15"
Knee (Z) Travel 16"
Spindle (Quill) Travel 5"
Quill Feeds 0.0015 / 0.0028 / 0.0047 IPR
Head Tilt 90° left/right, 45° front/rear
Approximate Weight 3,200 lbs
Dimensions 7' x 7' x 7'
ProtoTRAK KMX CNC Control
Kurt Power Draw Bar
Articulating Head for Machining Compound Angles
Power Feed on X, Y, Z Axes (Quill)
Manual Operation with Handwheels for Fine Feed and Rapid Traverse
CNC Operation on X and Y Axes
Auto Geometry Engine®
Powerful Offline Programming with Advanced Software Options
Canned Cycles: Position, Drill, Bolt Hole, Mill, Arc, Face Mill, Circle Pocket, Rectangular Pocket, Irregular Pocket, Circular Pocket, Rectangular Profile, Irregular Profile, Subroutine Repeat, Subroutine Rotate, Subroutine Mirror, Copy Repeat, Copy Rotate, Copy Mirror
Advanced File Management
Convenient Tool Table
Check Program with Graphics
View Programmed Toolpath During Program Run
