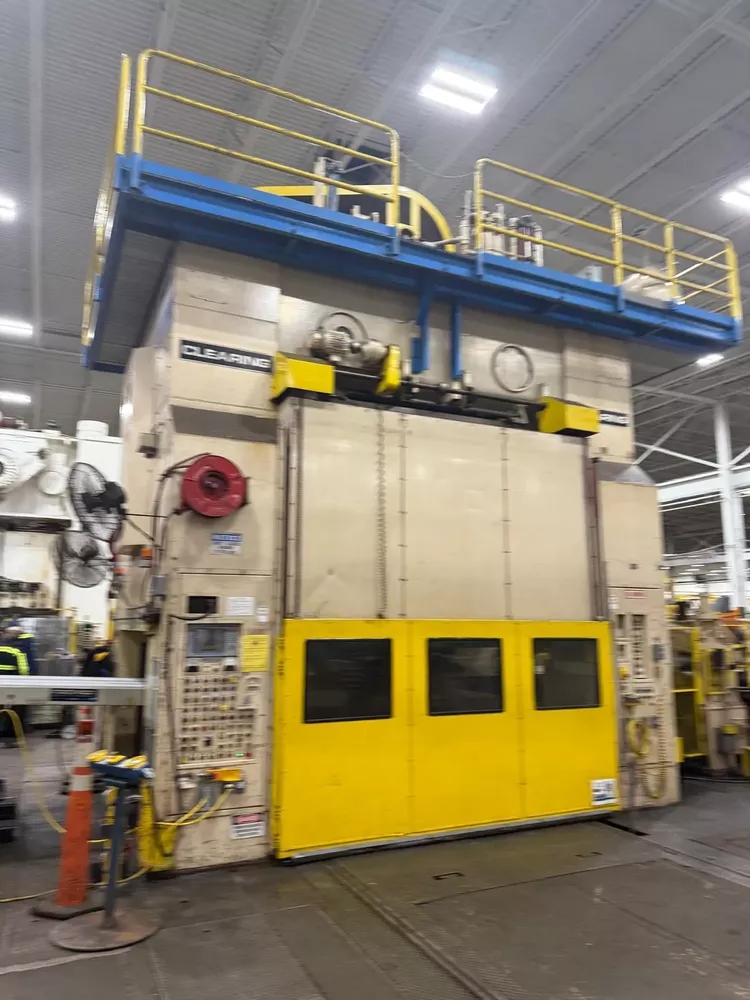

Clearing S4 1000 120-84 1000 tons

Press, Blanking
Press force 1000 tons
Drive capacity 1000 tons, ½″ up on stroke
Slide & bed area 120″ L–R × 84″ F–B
Clearance between uprights 122″
Upright opening 94″ F–B × 69″ high
Integral moving bolster carriage 120″ L–R × 84″ F–B
Bolster carriage top plate thickness 8″
Total bolster carriage height 17″
Passline above bolster carriage 30″
Slide stroke 12″
Slide adjustment 2″ by motor
Strokes per minute 20–60 continuous, 30 intermittent
Full flywheel energy @ 40 S.P.M.
Inch speed 20 S.P.M.
Shut-height/stroke down adjustment 44″
Shop floorline to top of bed 0″
Overall press height approx. 269″
Crown assembly weight 145,000 lbs
Slide assembly weight 57,900 lbs
Upright assembly weight (2) 49,500 lbs
Bed structure weight 78,000 lbs
Bolster carriages weight (2) 33,000 lbs
Tie rods, hydraulic nuts & standard nuts weight 21,000 lbs
Miscellaneous weight 59,000 lbs
Total weight 476,400 lbs
Press type Four point suspension, single action, eccentric gear, plunger guided
