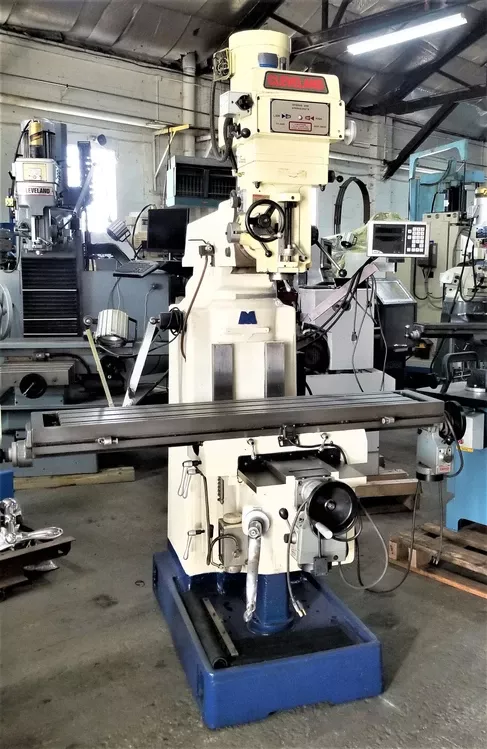

Cleveland K5 Vertical 3,600 RPM

CLEVELAND K5 1997

Table width: 11"
Table length: 58"
Longitudinal travel (X-axis): 43"
Cross travel (Y-axis): 18"
Vertical travel (Z-axis): 19-11/16"
Quill travel: 6"
Spindle nose to table: 3/4" – 16-3/4"
Spindle center to column: 2-5/8" – 25-1/2"
Ram travel: 19"
Spindle power: 5 HP
Spindle speed low range: 70–425 RPM
Spindle speed high range: 600–3,600 RPM
Spindle taper: NST #40
Quill diameter: 4.125"
Quill feed rates: 0.002", 0.004", 0.006"
Table load capacity (center): 1,200 lbs
Table T-slots: 0.63" x 3
Rigid head swivels left and right 90°
Coolant system
Work light
Chip pan
Floor space: 106" x 72" x 90"
Machine weight: 4,000 lbs
2 Servo Feeds Type 150 on table and saddle
Fagor 2-axis DRO Model 20i-M
