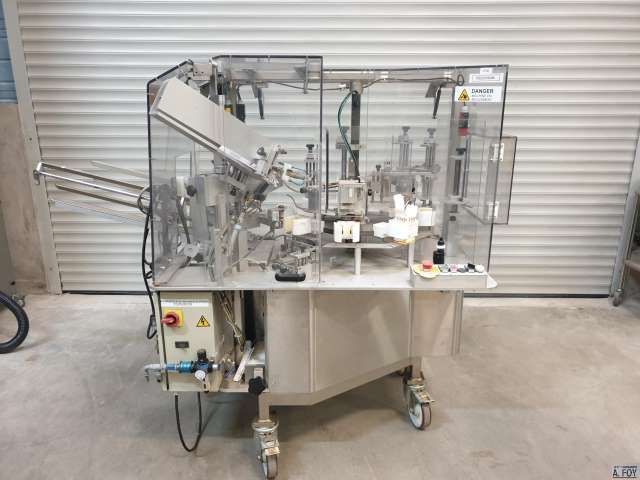

CMA MINICOMPACT

Semi-automatic vertical cartoner
Weight : 220 kg
Dimensions : (L x W x H) 2.00 x 1.10 x 1.55 M

Semi-automatic packing machine with alternate motion for bottles, tubes, jars, blisters, etc...

Equipped:
- pre-folded cases store.
- taking cases by suction cup.
- case bottom closing station.
- dispenser of pre-folded leaflets.
- product introduction station manually by an operator.
- closing station of the top of the cases.
- evacuation of finished cases.
- general drive by moto-variator.
- vacuum pump.
- protective carter with safety.

Current equipment: 50 x 50 x 105mm
Capacity:
Case dimensions:
mini length (pitch) 20 mm - max 175 mm
mini width 15 mm - max 140 mm
minimum height 60 mm - maximum 200 mm

Maximum production: 40 cases/minute.
Total electrical power: 0.5 kw.
230v mono.
65db.
Maximum compressed air pressure: 6 bar.

Machine on casters with stainless steel frame.
Complete documentation and certificate of conformity.
