CMB PFR-CCL

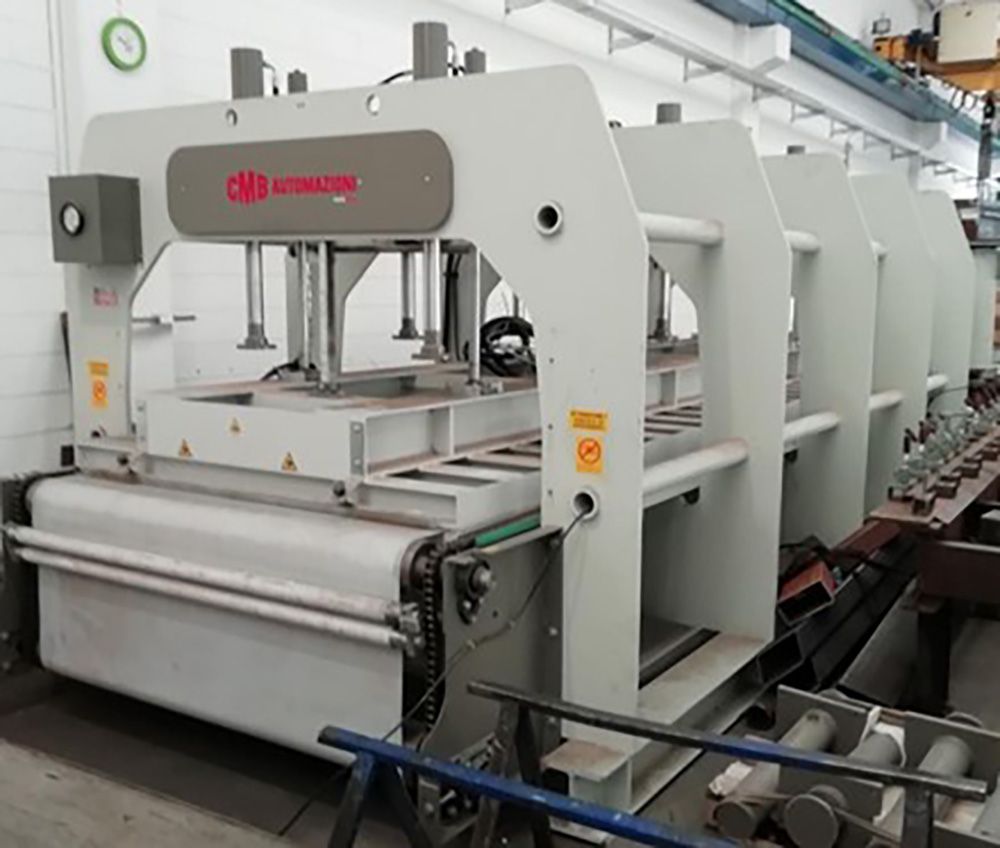

Automatic cold press
Technical data:
Motorized loading table 3,500 x 1,600 mm for the manual assembly of the panels and automatic loading into the press on the 1,600.
Structure made of welded steel profiles.
Devices for adjusting the working height for flatness on any unevenness of the floor.
Steel rollers. Foot switch.

PRESS
Panel size: 5,500 x 1,600 mm
Loading side: 1,700 mm
Stroke: from top to bottom
Opening: 450 mm
Cold press
The panels are made of sheet steel and mounted on a steel beam structure.
Maximum pressing force: 160 tons.
Specific pressure (on 100% of the surface): 1.82 Kg/cm2
Specific pressure (on 80% of the surface): 2.27 Kg/cm2
Pressure cylinders: 12 x Ø 80 mm
Auxiliary cylinders: 6 x Ø 50/30 mm
Power supply: 400 Volt EU/50 Hz/3 PH. + G

AUTOMATIC LOADING and UNLOADING of the panels on the bottom panel, on the 3,500 mm side.
Transport takes place via a motorized MYLAR belt.
The belt is activated by 2 rollers, one at the entrance and one at the exit of the press.
The rollers are driven by a motor with a chain that slides on special guides.
The Mylar belt rotates around the lower plate, which rests on special lateral supports.

The belt rotates on 2 rollers located at the entrance and exit of the press.
The ends of the MYLAR belt are fixed to special rods with devices for tensioning the MYLAR.
The upper plate is covered with a Mylar film

The press plates
are made of thick steel sheets welded to the support structure.

HYDRAULIC UNIT
with pump, oil tank and valves for operating the pressure cylinders and auxiliary cylinders that move the upper platen.
The hydraulic control unit is located in the upper part of the press to facilitate maintenance.

CONTROL PANEL
with buttons and selector switches. Pressure control gauge on the front of the baler.

UNLOADING MOTORIZED ROLLER TABLE 2,000 x 1,600 mm
The unloading table is located at the exit of the press to manually unload the pressed panels.
Exit side from the press: 1,600 mm.
