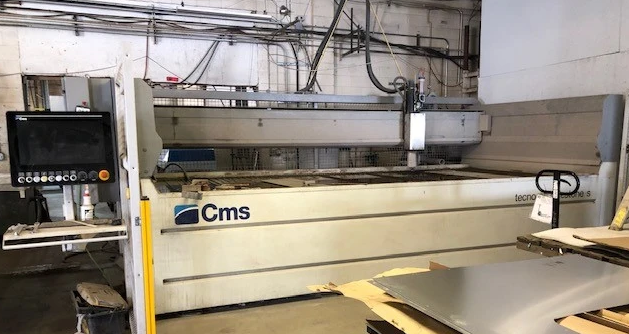

CMS TECNOCUT IDROLINE S2040 5-AXIS CNC CONTROL

PC-based OSAI Open-M numerical control
Electronically controlled abrasive hopper
Software license CAD/CAM TC2020 + JDE post processor
5-axis cutting head
Anti-collision system with height sensor
Laser pointer with roto-translation function
Photoelectric barriers
Automatic exhaust abrasive evacuation with stainless steel catch tank
Automatic water level adjustment for submerged cutting (manual)

X-axis travel 4250 mm / 167" / 13.94' (1 head)
X-axis travel 4000 mm / 157" / 13' (2 heads)
Y-axis travel 2000 mm / 78" / 6.5'
Z-axis stroke 350 mm / 13.8" (3-axis head)
Z-axis stroke 250 mm / 9.8" (5-axis head)
Net cutting area X-axis 4250 mm / 13.94' / 13'
Net cutting area Y-axis 2000 mm / 6.5'
Table size X-axis 4650 mm / 15.25'
Table size Y-axis 2050 mm / 6'8"
XY axes max feedrate 40000 mm/min / 131 ft/min / 1570 ipm
Acceleration 2 m/s²
Positioning accuracy ±0.038 mm / ±0.0015"
Repeatability ±0.0254 mm / ±0.001"
Absorbed power 3 kW
Max loading weight 2000 kg / 4400 lbs
Weight (tank empty) 4000 kg / 8800 lbs
Footprint 5960 mm x 3900 mm x 3900 mm / 19.6' x 12.9' x 12.9'
Greenjet 69,000 psi intensifier
