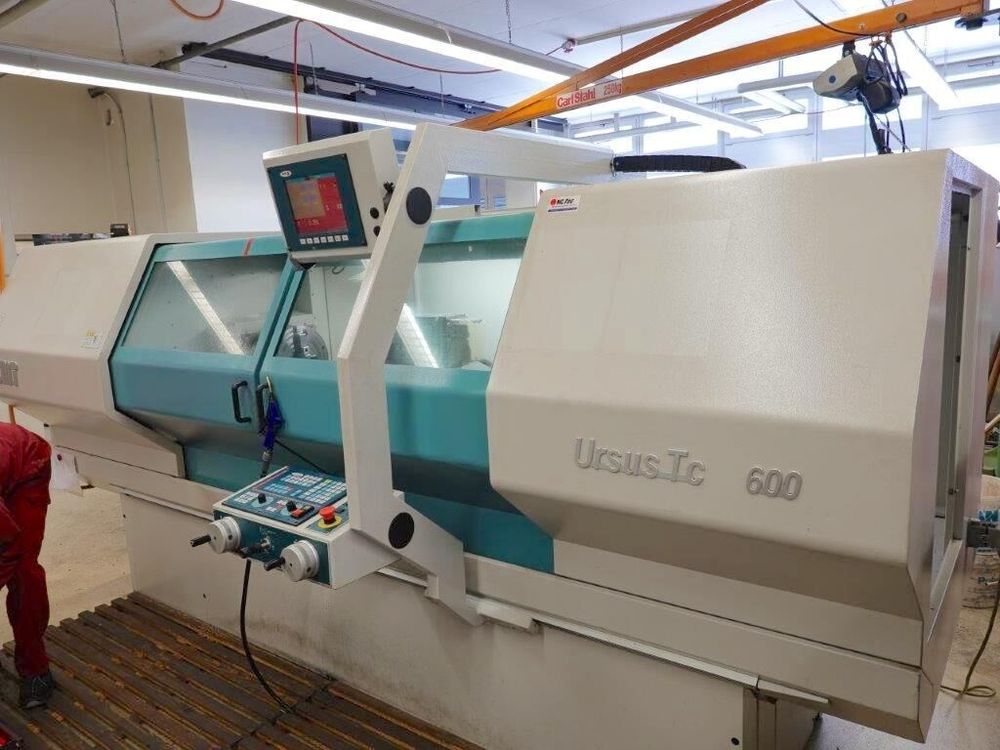

Cmt Ursus CNC FAGOR 8055 1800 rpm TC 600 2 Axis

CMT URSUS TC 600

Max bar working diameter 105 mm
Max swing over bed 600 mm
Max swing over saddle 365 mm
Max working length 1500 mm
CNC FAGOR 8055
X-axis rapid feed 5000 mm/min
Z-axis rapid feed 5000 mm/min
Max spindle speed 1800 rpm
Spindle nose CL8″
Spindle hole 105 mm
Spindle power 9/13 kW
Gearbox Yes
Quill stroke 220 mm
Quill diameter 68 mm
Tailstock taper CM5
Turret positions 8
Total power supply 13 kW
Closed steady rests 1
Self-centering chuck Forkhardt with quick coupling
CE certification Yes
Electrical drawings Yes
Maintenance and use manuals Yes
