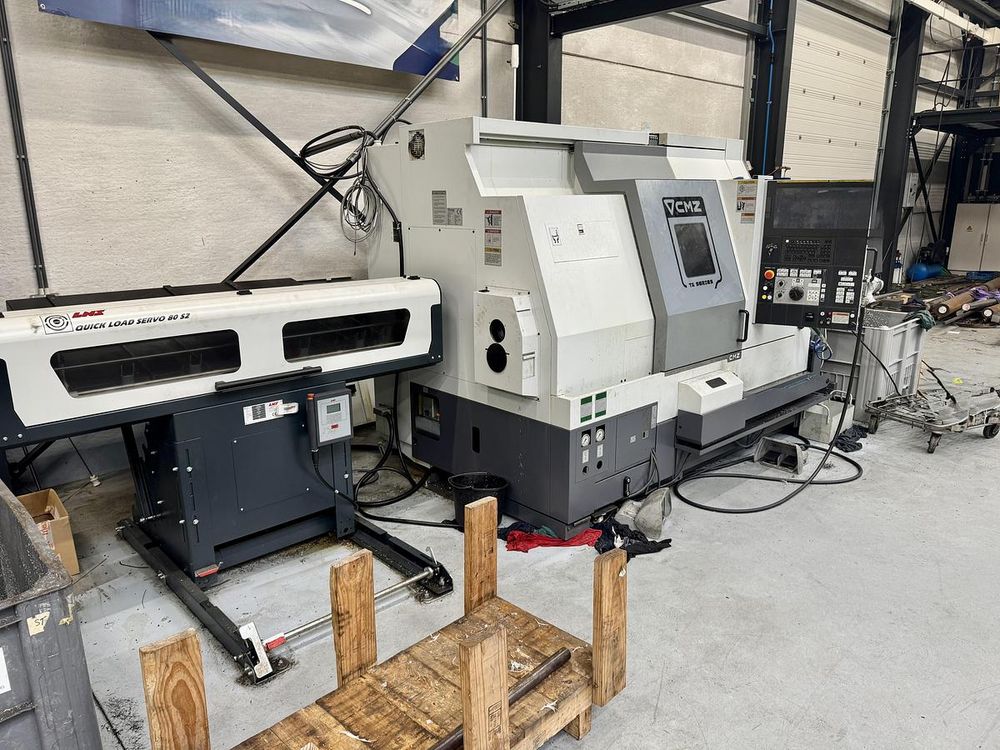

CMZ FANUC Series 32i-TB 4,000 rpm TA-20-YS-640 4 Axis
Ref :
2807928-3-AW
Condition :
Used
Manufacturer :
CMZ
Controller :
FANUC Series 32i-TB
Spindle Speed :
4,000 rpm
Model :
TA-20-YS-640
Nb Of Axis :
4 Axis
Year(s) :
2021
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 310 mm
Z-axis travel: 640 mm
Y-axis travel: +70 / -50 mm
C-axis
Sub-spindle C-axis
Control: FANUC Series 32i-TB
Turning diameter over bed: Ø760 mm
Turning diameter over slide: Ø600 mm
Maximum turning diameter: Ø460 mm
Bar capacity: 66 mm
Main spindle speed: 4,000 rpm
Sub-spindle speed: 4,500 rpm
Sub-spindle bar capacity: 52 mm
12-station tool changer
Live tooling
Sub-spindle
LNS QLS80 S2 bar feeder
Swarf conveyor
Distance between spindles: 625 mm
Machine weight: 7,500 kg
