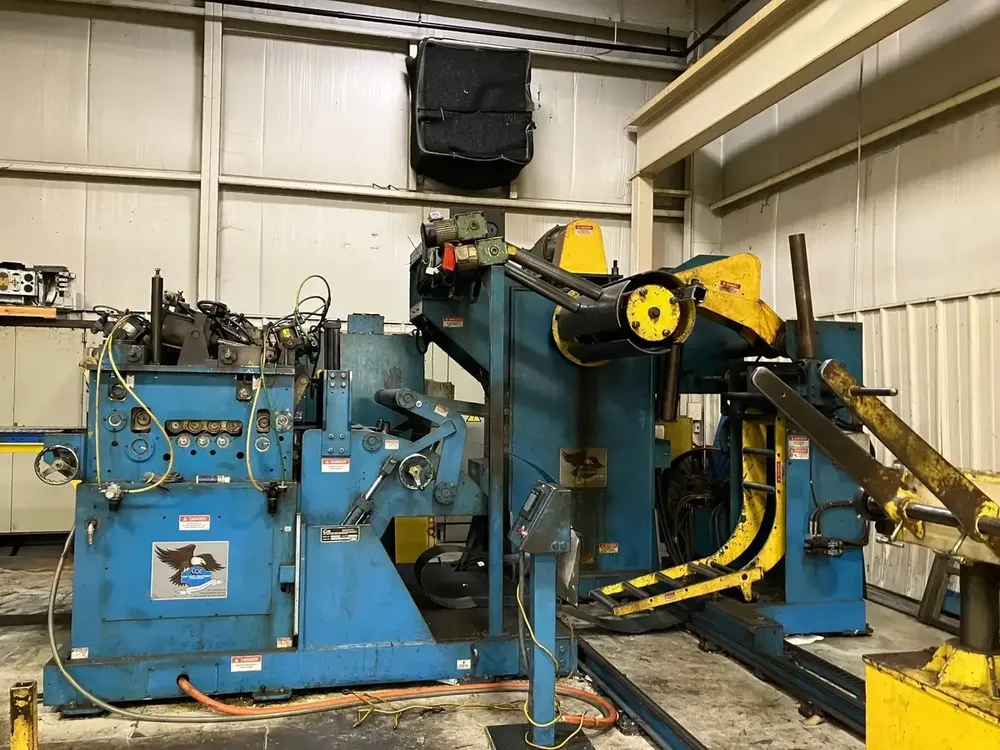

COE CCL-S3-20040 Coil Outer Diameter: 72"

Ref : 2793789-3-MT

Condition : Used

Manufacturer : COE

Model : CCL-S3-20040

Capacity : Coil Outer Diameter: 72"

Year(s) : 2004

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Maximum Coil Weight: 20,000 lb
Maximum Coil Width: 40"
Maximum Coil Thickness: 0.25"
Coil Inner Diameter Range: 20" – 24"
Feed Velocity: 200 FPM
Feed Acceleration: 20 ft/sec²
Feed Accuracy: ±0.005"
Pinch Rollers: 2 Rolls (4.42" Diameter)
Feeder Rollers: 2 Rolls (5.66" Diameter)
Straightener Rollers: 7 Rolls (3.36" Diameter, 4 Over 3)
Expansion Type: Hydraulic Cylinder
Type: Complete Feed Line
Coil Car
Lewco Conveyor
