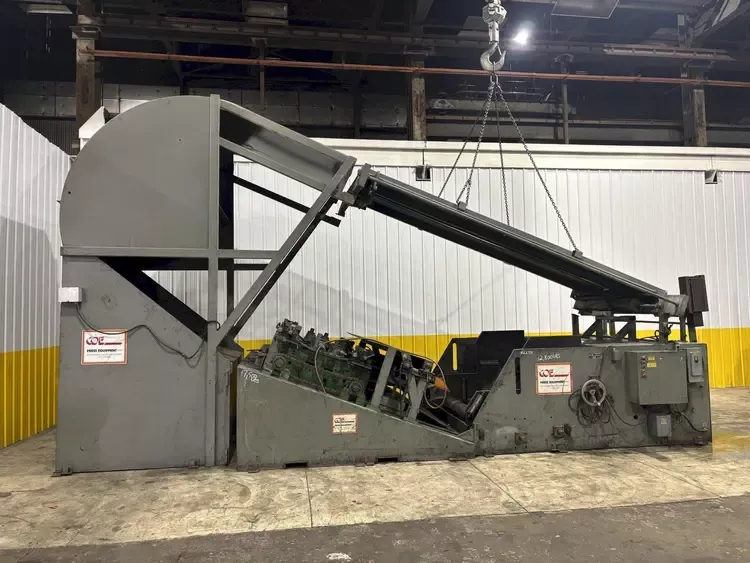

COE CPCC-20072 Coil Feed Lines Reverse Loop Cradle Straightener Combination

COE CPCC-20072

Coil weight capacity: 20,000 lb
Stock width capacity: 72"
Max stock thickness capacity at full width: 0.2"
Coil O.D. capacity: 60"
Capacity: 48" wide x 0.250" thick material
Power supply: 460/3/60
Feed direction: Right to Left
Coil cradle straightener entry and exit pinch rolls
Air operated upper coil cradle straightener pinch roll adjustments
Five straightening rolls, 5" diameter
Hand crank upper straightening rolls adjustments (5 ton screw jacks)
Inclined floor mounted powered straightener
Air operated stock peeler
Stock end debender system
Dual adjustable side plates with side plate rollers
Reverse loop stock deflector
Overhead guide chute
Chute extension
Common operators control console
