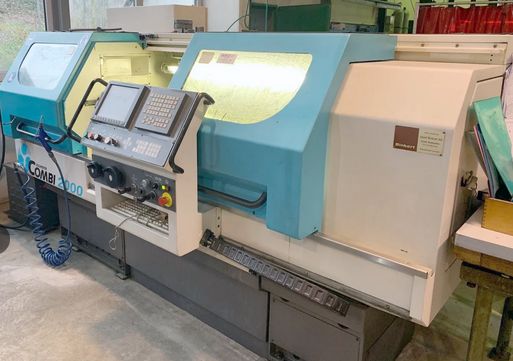

Colchester Fanuc Series 210i-T 2500 RPM COMBI 2000 2 Axis
Ref :
2789932-3-MT
Condition :
Used
Manufacturer :
Colchester
Controller :
Fanuc Series 210i-T
Spindle Speed :
2500 RPM
Model :
COMBI 2000
Nb Of Axis :
2 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Center Height: 200 mm
Distance Between Centers: 1250 mm
Swing Over Cross Slide: 246 mm
Swing Over Bed: 400 mm
Spindle Bore: 54 mm
2 Axis
Control: Fanuc Series 210i-T
Longitudinal Travel (Z): 1156 mm
Cross Travel (X): 240 mm
Rapid Traverse (X): 10 m/min
Rapid Traverse (Z): 20 m/min
Turret: Duplomatic BSA 120
Turret Positions: 8
Fixed Tools: 8
VDI 30 Tooling
Spindle Nose: D1-6 Camlock
Spindle Speed: 12–2500 RPM
Spindle Motor: 7.5 kW
Tailstock Morse Taper: 5
Tailstock Spindle Stroke: 155 mm
Tailstock Spindle Diameter: 73 mm
3-Jaw Chuck: 250 mm
Coolant System
Work Lamp
Tailstock Unit
Set of Toolholders
Voltage: 380V / 3 Phase / 50 Hz
