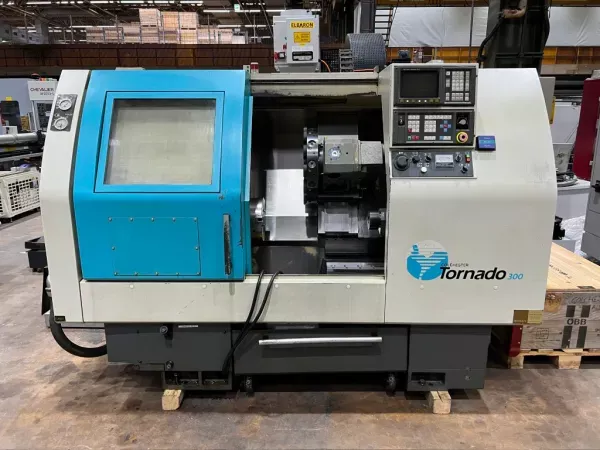

Colchester Harrison CNC CONTROL 4000 rpm 600 LATHES TORNADO 300 2 Axis

X-axis travel: 240 mm
Travel above center: 213 mm
Below center: 27 mm
Z-axis travel: 500 mm
Rapid feed X-axis: 10 m/min
Rapid feed Z-axis: 20 m/min
Minimum feed increment: 0.001 mm
Spindle power: 18 / 22 kW
Spindle connection: A2-8
Spindle bore: 90.5 mm
Drawtube diameter: 82 mm
Front bearing inner diameter: 130 mm
Max spindle speed: 4000 rpm
Swing diameter: 530 mm
Turning diameter over cross slide: 330 mm
Max turning diameter: 300 mm
Max turning length: 500 mm
Center height: 913 mm
Bed width (Z direction): 750 mm
Bed width (X direction): 393 mm
Bed width (tailstock guide): 255 mm
Cross slide width: 256 mm
Bed slide angle: 600 mm
Tailstock quill diameter: 95 mm
Tailstock quill taper: No. 5 MT
Tailstock quill stroke: 125 mm
Tailstock travel: 485 mm
Max tailstock axial force: 7860 N
Chuck size (A type): 265 mm
Turret tool stations: 12
Toolholder interface: VDI 3425 / 40
Turning tool size: 25 x 25 mm
Max boring bar diameter: 40 mm
Machine footprint: 3.26 m²
Machine weight: 3300 kg
