Colines AllRoll Ex9 3000

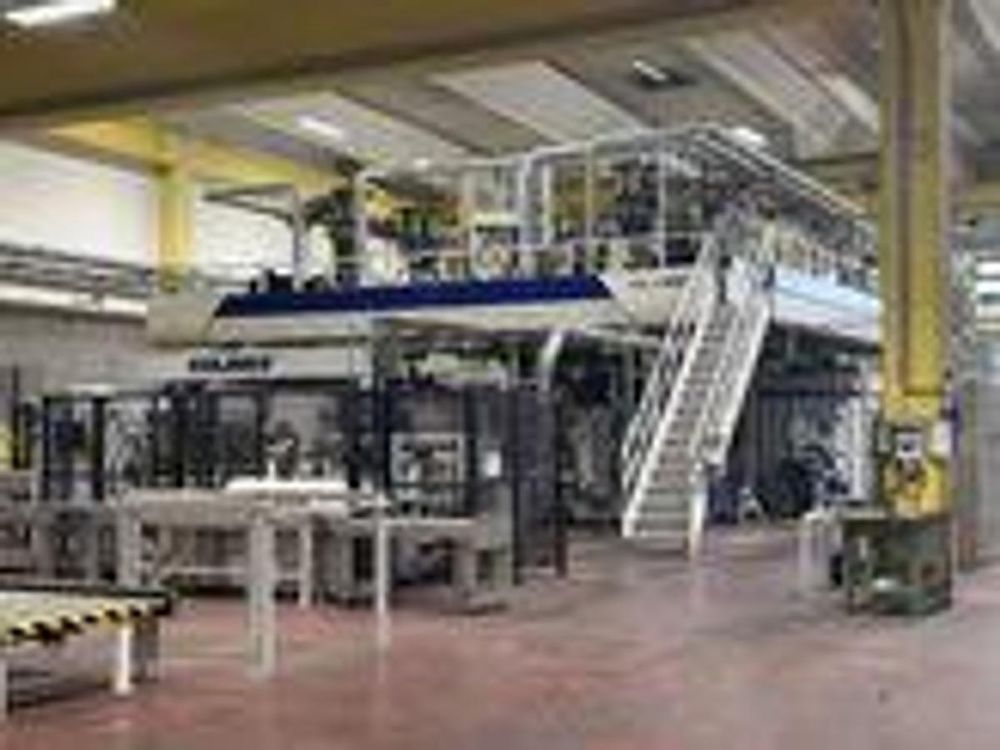

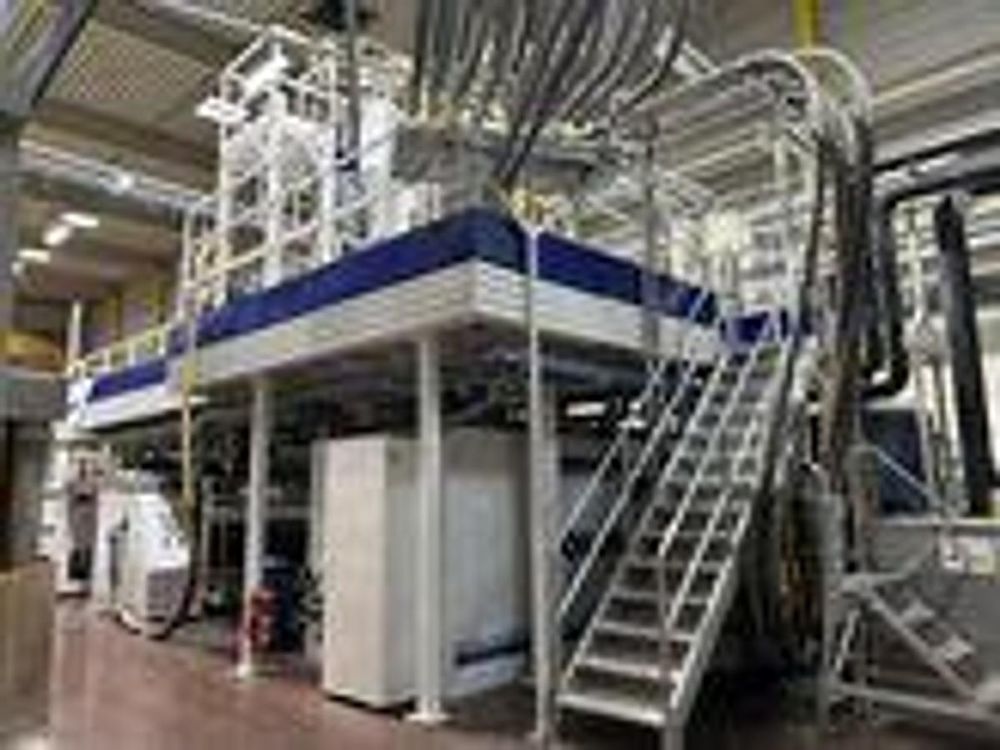

EX 9 3000 CAST FILM EXTRUSION LINE
Number of layers: 9
Film structure: A, B, C, E, D, E, C, F, G
Material: Stretch film LLDPE
Film width: 3000mm

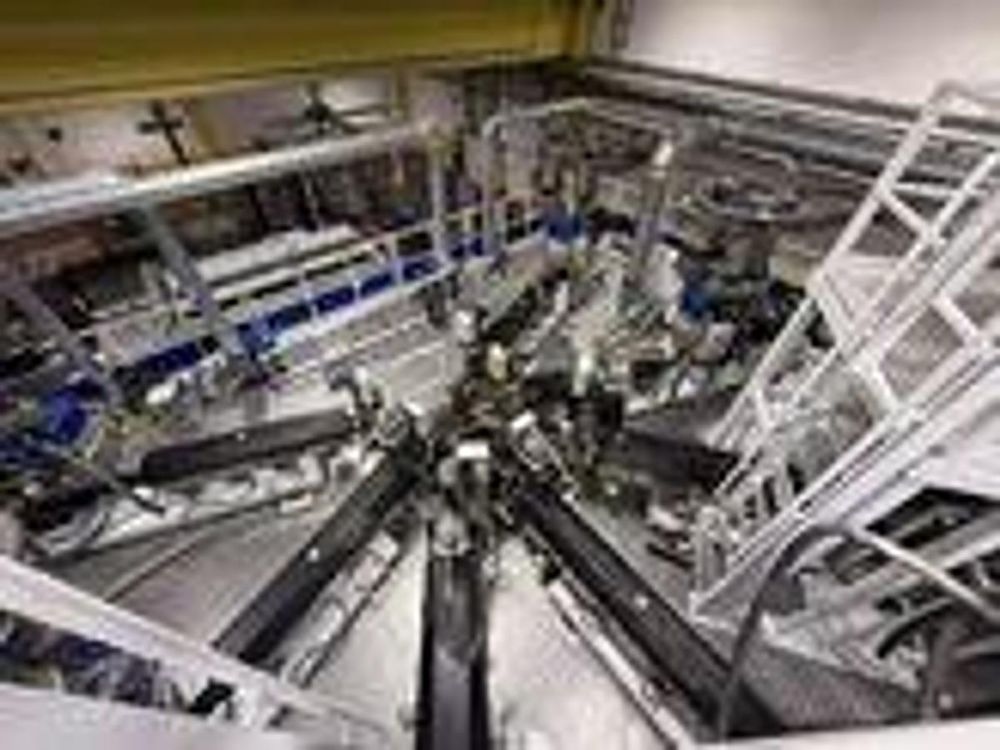

Extruder 1 layer: A
Screw diameter 1: 65mm
Description 1: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 2 layer: B
Screw diameter 2: 65mm
Description 2: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 3 layer: C
Screw diameter 3: 120mm
Description 3: single screw extruder Perform ex, L/D ratio 30 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 4 layer: D
Screw diameter 4: 80mm
Description 4: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 5 layer: E
Screw diameter 5: 120mm
Description 5: single screw extruder Perform ex, L/D ratio 30 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 6 layer: F
Screw diameter 6: 65mm
Description 6: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Extruder 7 layer: G
Screw diameter 7: 65mm
Description 7: single screw extruder Perform ex, L/D ratio 34 with Siemens ac motors Gravimetric dosing unit 4 components

Head description: Cloren 9 layer fixed geometry feed block and automatic flat die reflex, computer controlled lip adjustment system
Die width: 3750mm

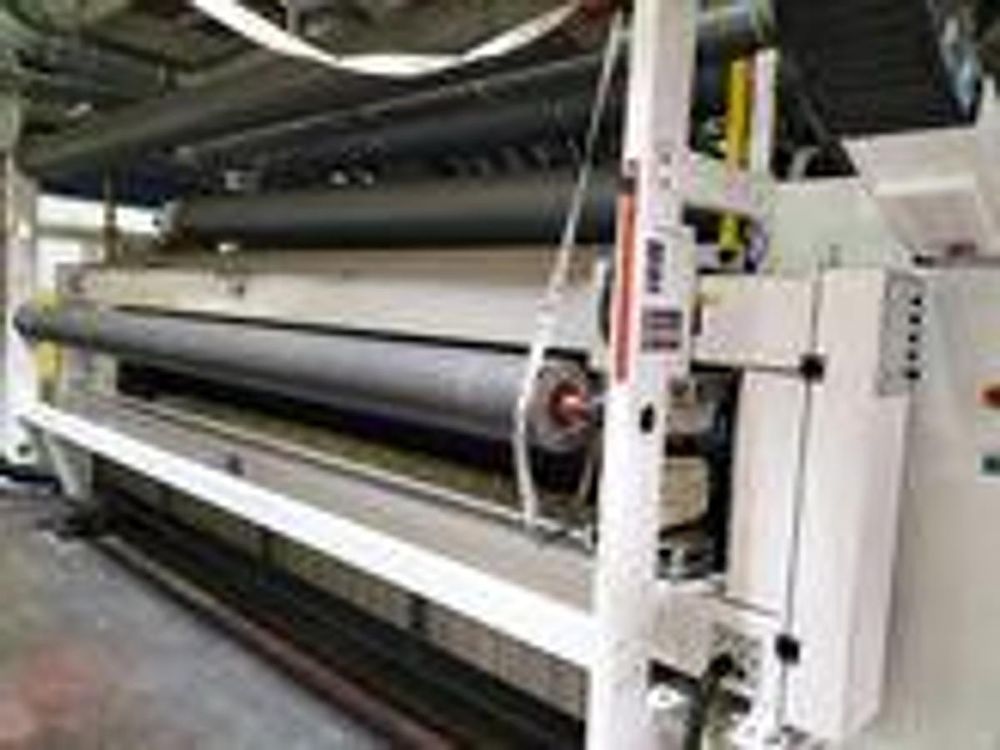

Chill roll unit with a roller diameter: 1400mm and detachment cooled roller diameter 300mm, complete with ac motor drives, rotating joints and rubber coated cleaning roller

Thickness control: NDC USA IR thickness gauge control system
Rewind: automatic winder AllspeedyIV, 3 shaft turret winding, 1500mm wide

Screen changer for extruders
Dual chamber vacuum box
Electrostatic edge pinning device
Industrial supervision fan less Pcs

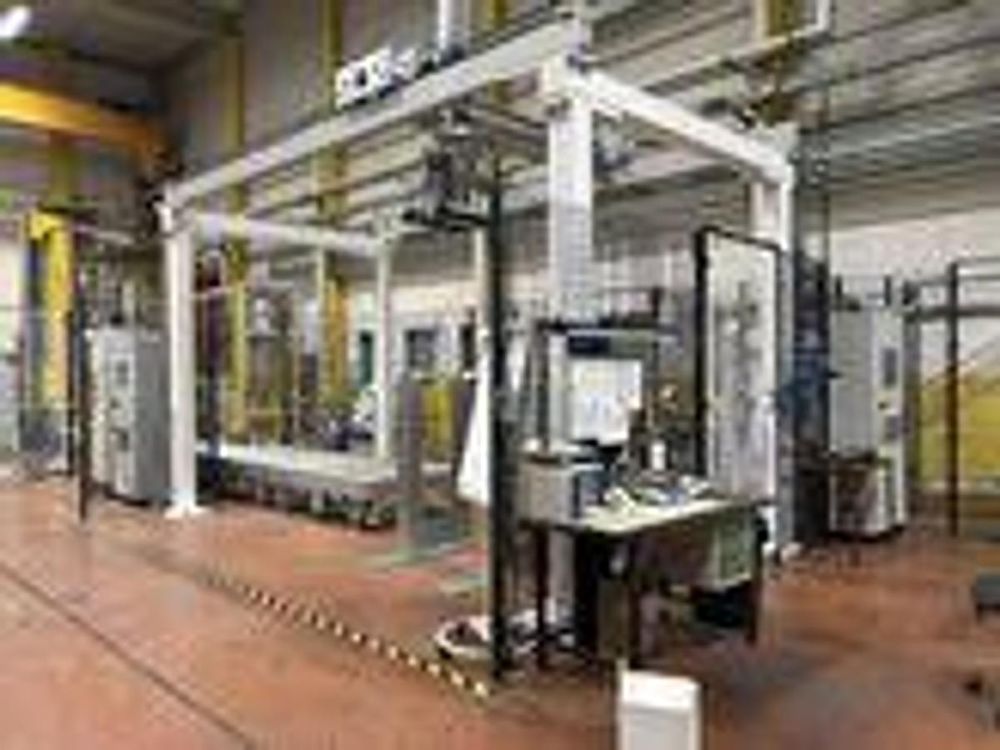

Palletizing unit for automatic and jumbo reels
Bigmouth recycling unit
