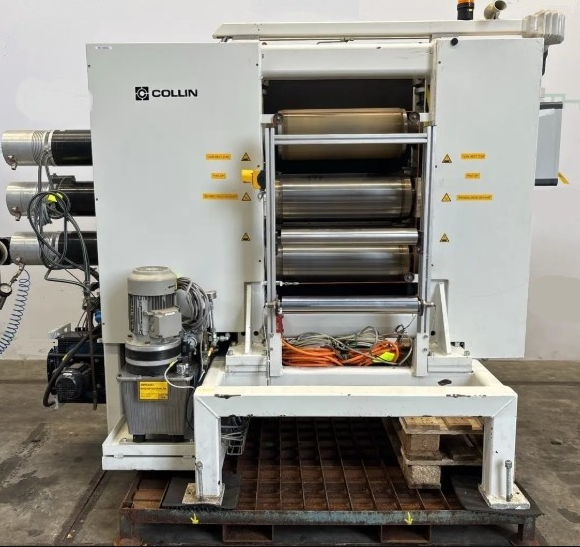

Collin 3-Roll I-Calender 250x600

Specification: 3-Roll I-Calender 250x600
- Collin 3-Roll I-Calender 250x600
Application: Smoothing/finishing of film materials up to 2 mm thick.
Machine configuration: with upstream unwinding unit and downstream rewinder.
- Upper and lower rollers adjustable for gap adjustment.
- Roller diameter: 252 mm
- Roller length: 600 mm (normally 500 mm)
- Rollers 2, 3: temperature-controlled up to 320 °C
- Heating power: 9 kW / roller
- Speed: infinitely variable
- Roller speed: +/- 8.6 rpm
- Rollers adjustable: 0 - 2 mm
- Hydraulic unit: 2.2 kW
- Oil cooler: 0.25 kW
- Servo motors rated power: 1.4 kW / roller drive
- Unwinding unit: 0.24 kW
- Rewinder: 0.24 kW
- Space requirement approx.: 3,120 x 1,800 mm
- Overall height approx.: 3,160 mm
- Weight approx.: 3,500 kg

Accessories: Lifting tool,
two spare rollers
