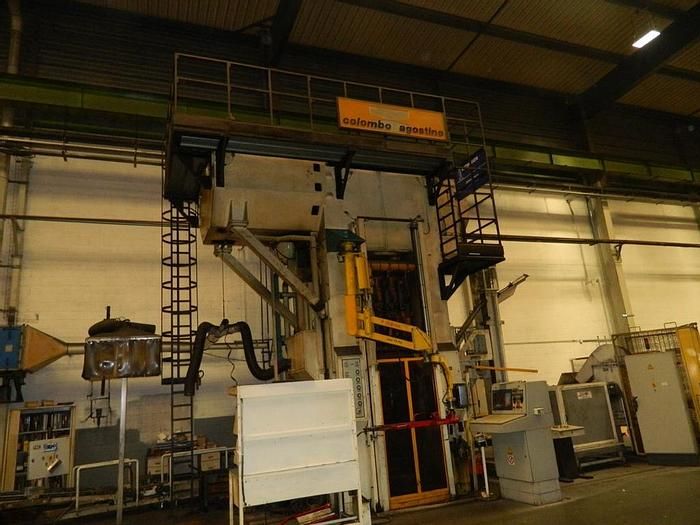

Colombo Agostino 630 630 TON
EUROPE (Western and Northern)
COLOMBO AGOSTINO 630
1999
Technical Data
Tonnage: 630
Frame type: H frame
Table size X: 1250 mm
Table size Y: 1000 mm
Slide travel (stroke): 450 mm
Slide X: 1250 mm
Slide Y: 1000 mm
Slide registration: 6
Slide stroke per minute: 17–50
Slide push points: 2
Piston rods: 2
Depth of slide: 1000 mm
TDC span: 1700 mm
Lateral window: 930 mm
Mould side window between uprights: 930 mm
Mounting light (PMS): 1700 mm
Motor power: 100 kW
External dimension X: 5200 mm
External dimension Y: 3000 mm
External dimension height: 6400 mm
Weight: 1000 tons
Electrical info: Pressure expressed at 30 mm from DPC
Accessories: 3-station transfer
Subtype: Double upright
Condition: Working
