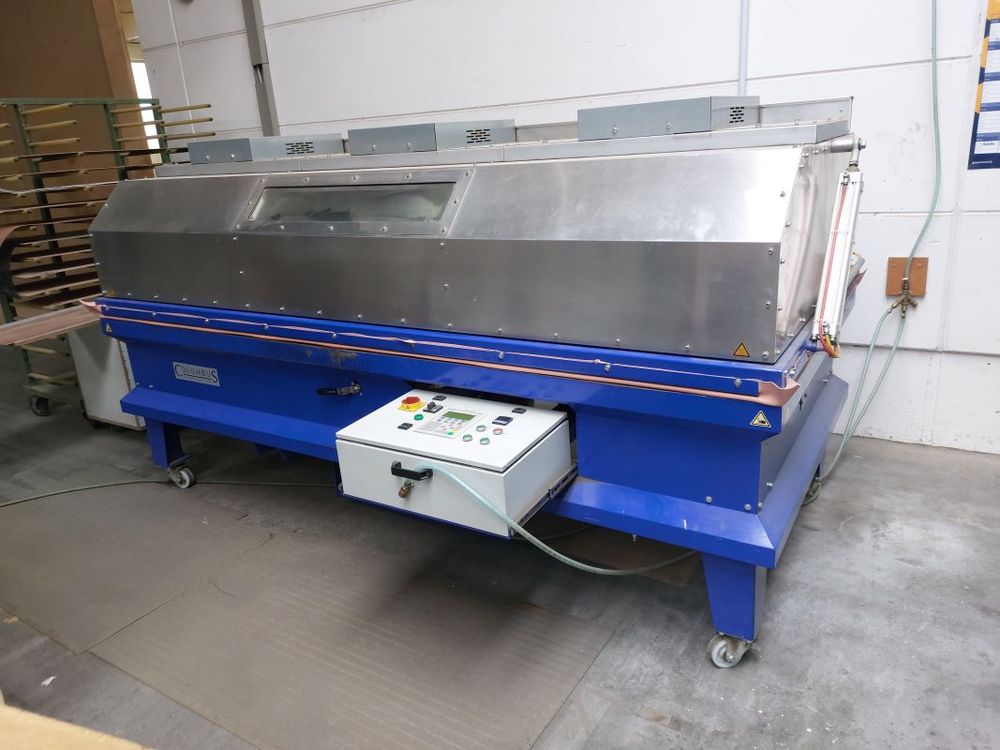

Columbus Multimat

Membrane press
Press table: 3000 x 1400 mm

Technical data:
Press table: 3000 x 1400 mm
MULTIMAT – Membrane Press Table
• Mobile table with pivoting heating hood and membrane frame
• High-performance vacuum pump TF 40, final pressure adjustable up to max. 900 mbar (9 t/m²)
• Pneumatically pivoting foil fixing frame
• Insertable membrane frame incl. highly elastic silicone membrane (700% elongation)
• Aluminum heating hood, fully insulated, continuously adjustable from 0 to 140 °C
• Digital differential pressure switch
• Entire system (including vacuum pump) maintenance-free
• Electrical connection (incl. heating hood): 10 kW, 400 V, 50/60 Hz

Dimensions:
Overall dimensions: 3200 mm × 1600 mm
Usable area (without membrane frame): 2800 mm × 1200 mm
Usable area (with membrane frame): 2750 mm × 1150 mm
Table / working height: 900 mm
