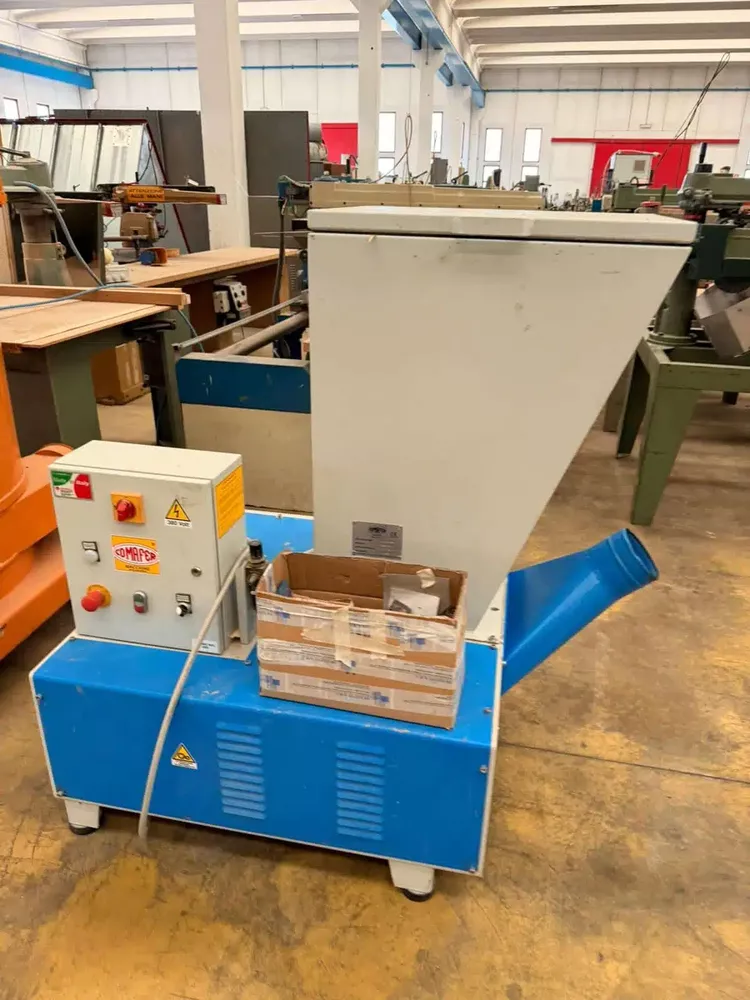

Comafer 300s

Grinder
Base composed of a rectangular frame made of sturdy electro-welded and powder-coated steel
Loading hopper made of sturdy electro-welded and powder-coated double-walled steel with sound-absorbing material to effectively limit noise
IP55 rated control panel equipped with an amperometric relay to monitor motor current consumption
and manage the production process, optimizing output based on the type of material being ground
Knife roller to which the reversible and sharpenable knives are attached with a spiral system that allows the entire width of the roller to be covered during processing
A grid attached after the knife roller ensures uniform ground material, ideal for briquetting
Compact, well-built gearmotor with oil-bath ball bearings attached directly to the roller
Pneumatic solenoid valve unit with cylinder connected to the sliding drawer that feeds the knife roller
Suction nozzle attached after the knife roller grid ensures adequate suction of the ground material produced

TECHNICAL DATA:
Production (kg/h) 15÷100 approx. / kg/h 30÷140 approx.
Gearbox motor power kW/hp 4/5.5
Voltage Volts/Hz 400/50
Knife roller Ø 130 x 450 mm
30 knives
Screen with sieve Ø 10 mm
Suction nozzle Ø 150 mm
Suction speed m/sec 28
Loading hopper dimensions (internal measurements) Upper W 630 Lower W 330 H 850 D 450 mm
Grinder dimensions W 1230 H 1350 D 905 mm
Weight 500 kg
