COMARME F2000 600x500x500 mm

Folding Box Gluing + Erecting Machines
Box dimensions (max): 600x500x500 mm (LxWxH)
Box dimensions (min): 220x100x100 mm (LxWxH)
Average production: 840 boxes/hour
Box loader unit capacity: 110 boxes
Max air pressure allowed: 6 bar
Air consumption cycle box: 22,0 NI
Venturi vacuum unit: 25m3/h 700mm HG
Installed power: 0,40 kW

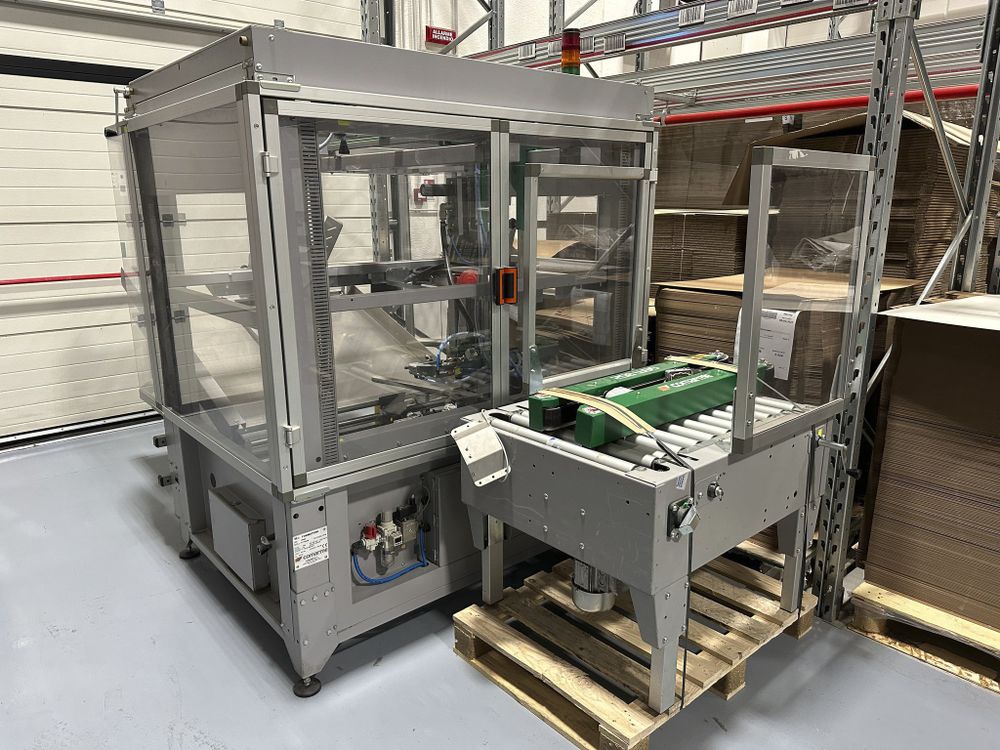

Automatic carton erecting machine Mod. F2000 + GEM B52
The case erector prepares the boxes with the 4 bottom flaps folded, taking them from the side magazine (STD - OPP)
Bottom flaps are sealed by adhesive tape (GEM B52),
by Hot Melt (HM B520+HM B52P) either by gummed paper tape (GEM B520-GP) and sent to the filling point
Venturi system suction device for boxes withdrawal
Suction device of double suction feed for strong boxes, on request
Boxes dimensions regulation manual knob
Pneumatic system for boxes Evacuation
Digital Kite Touch Screen panel 7”
Photocell kit to control the machine cycle
CE safety protections: top & bottom covers, curtain cover on box loader side
