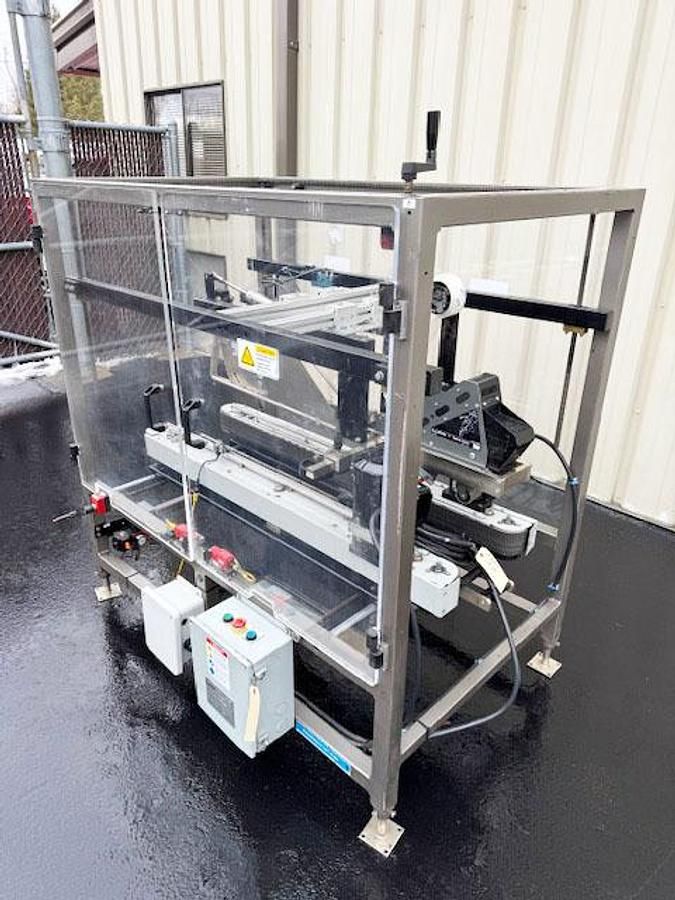

Combi TB1 Case Sealer Top Taper Series

- Factory rated up to 20 cases per minute
- Fully Automatic with Pneumatic Rear Flap Kicker-Closer Arm
- Includes (1) 3M AccuGlide-2+ Taping Head for 2” Wide Tape for Top Case Sealing
- Side Gripper Belts for Case Transfer, 3” H x 55” L
- Handwheel adjustments for various length, width and height RSC boxes
- Adjustable for various size RSC corrugated boxes (consult factory for specific case capabilities)
Minimum Case Range 5” L x 5” W x 5” H, Maximum Case Range 20” L x 16” W x 20” H
- Case Conveyor Height 22” (adjustable)
- Leveler Legs
- Operator Controls with E-Stop
- Safety Interlocking Access Doors
- Electrical 230 Volt, 3 Ph, 60 Hz,
- Overall Dimensions 60” L x 45” W x 67” H
