Combi TG-3050-6/100cn3 75T
EUROPE (Western and Northern)

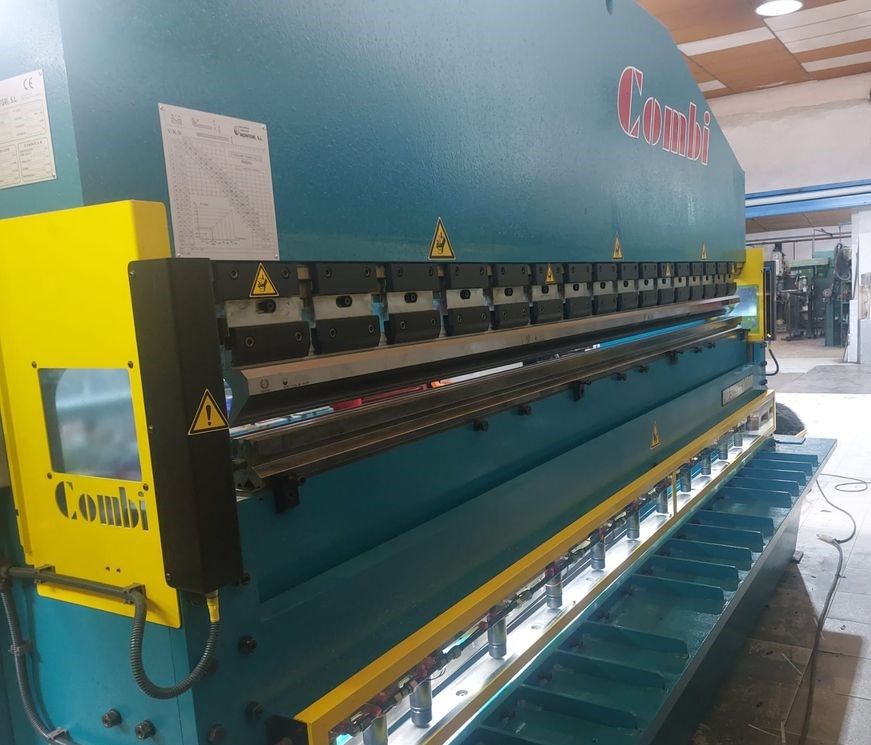

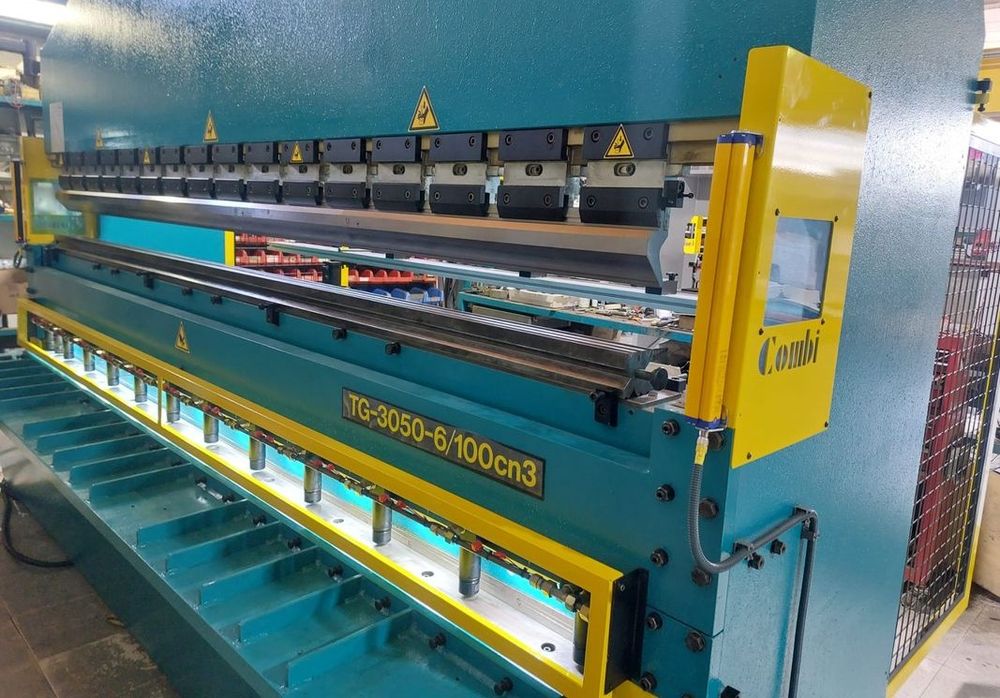

COMBI TG-3050-6/100cn3
3050 X 6 / 75T CNC 3 axes
Cut and bend your sheet metal on a single machine!
Shearing capacity = 6 mm (steel) / 8 mm (aluminum) / 3 mm (stainless steel) x 3,040 mm
Bending capacity = 3 to 4 mm x 3.1 m between uprights / 5 mm x 2 m / 6 mm x 1 m (steel)
Machine fully factory-reconditioned and guaranteed for 6 months
- New electrical cabinet and digital control
- New back gauge motor

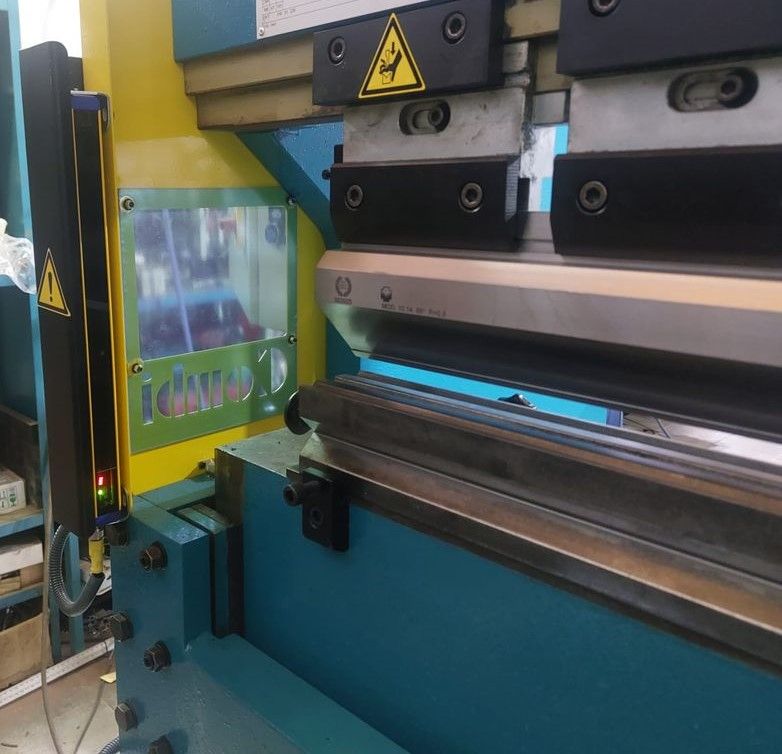

- Latest-generation front protection for the bending area (light curtain)
- New tooling
- New digital scales and proportional solenoid valve coils
A truly refurbished machine at a used price!
Ideal for making lacquered aluminum window coverings and metalwork
bending steel up to 3 to 4 mm over 3 m.
Motorized stop for the shear and the brake.

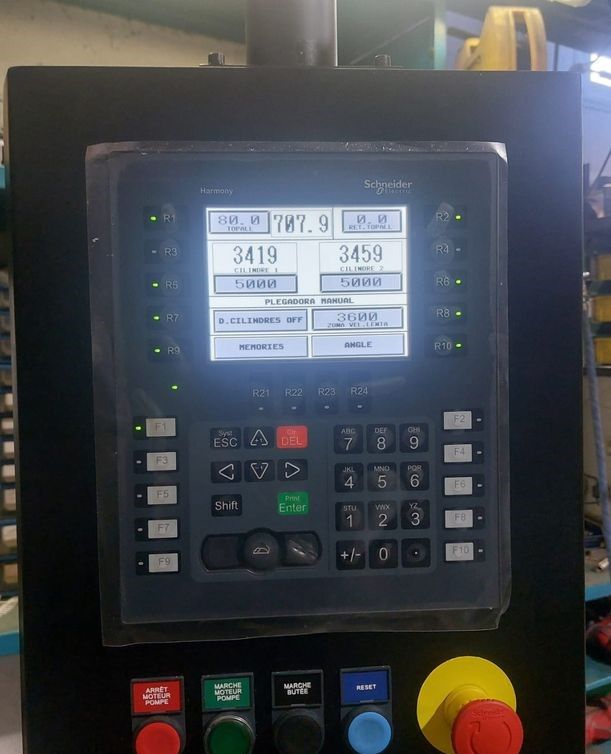

SCHNEIDER 3-axis numerical control with:
X-axis stop and synchronization of the left and right Y1 and Y2 cylinders
Bending accuracy = 0.04 mm
Direct programming of bending angles
99 programs of 10 bends with a fully automatic cycle
Automatic initialization of the X-axis stop at each start.
Programmable X-axis stop retraction during bending

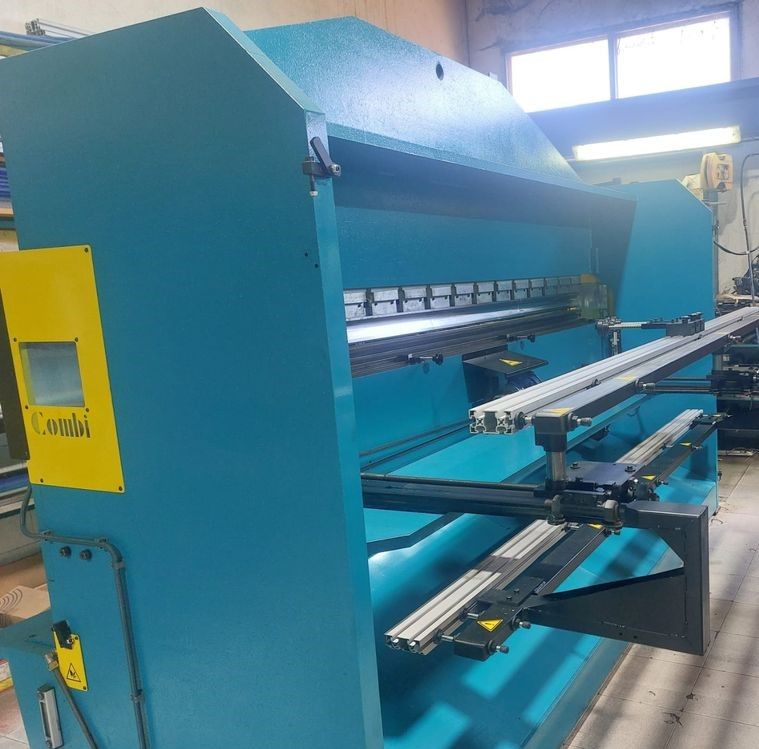

Standard equipment: 2 sheet metal bending supports
Tools included: 4 bending blades (length 835 mm), straight to 30° or swan neck + 1 die (length 3050 mm) with 9 V-shaped blades! mm Ref. 1318
