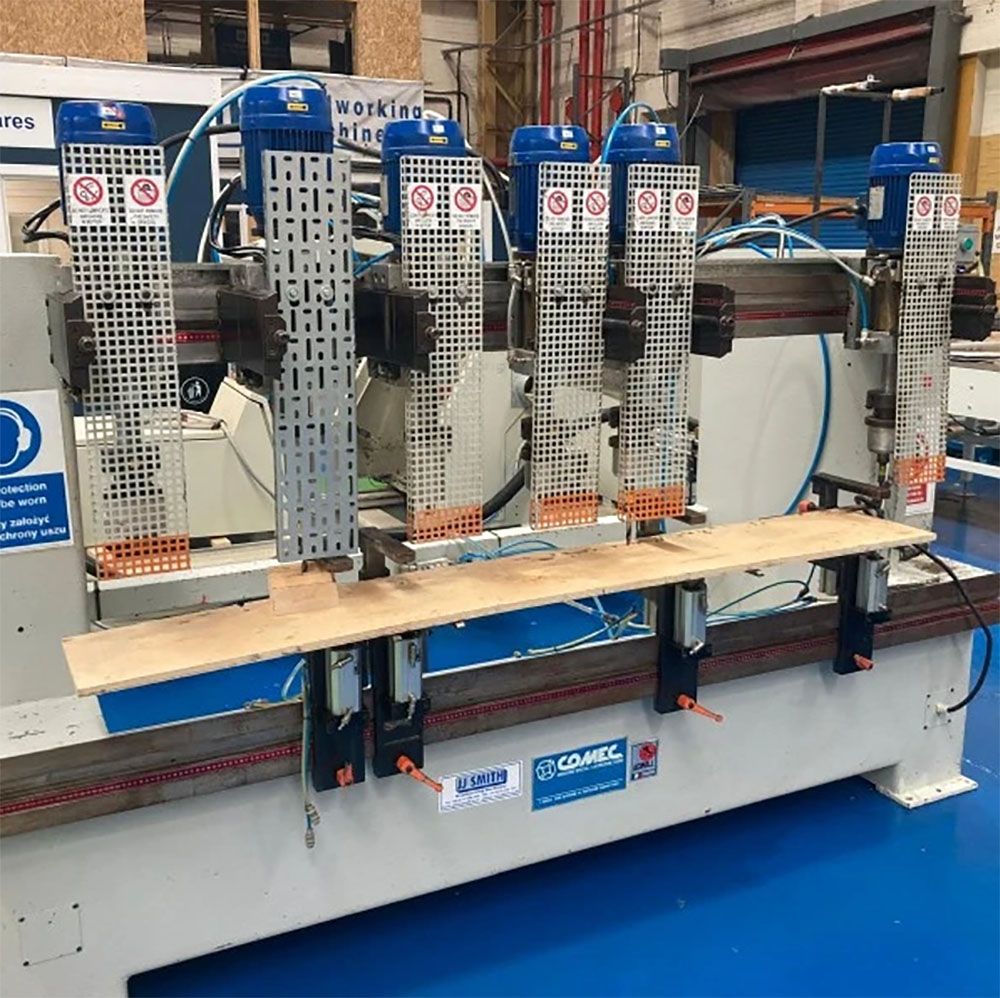

Comec FM1600

6 Head Rail Borer
Provisional specification
In - Line Vertical Borer for Solid Rail Components etc
Heavy duty steel welded frame
4 no Vertical Heads with Single Drills
2 no Vertical Heads with Triple Drills
Motor power 3hp each.
Pneumatic control for drilling stroke
All heads adjustable along X axis via rack and pinion movement.
Scale for positioning.
Max. drilling between outside heads 1600mm.
All heads with cross slide support & adjustment in / out
Adjustable depth stroke to heads
5 no Pneumatic clamps - adjustable in lateral positioning.
Two hand push button safety control.
