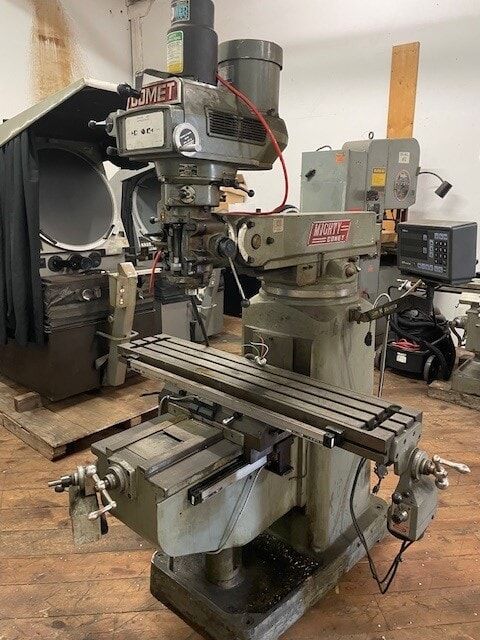

Comet, Mighty 3KVHD Vertical 4200 RPM

Mighty/Comet 3KVHD
1995

Table size 10" x 50"
Longitudinal table travel 36" (30" with power feed)
Cross feed of table 16"
Vertical feed of knee 16"
Quill diameter 3.375"
Quill travel 5"
Quill feeds 0.0015, 0.003, 0.006 IPR
Head tilt 90° left/right
Head tilt 45° front
Head tilt 38° back
Spindle speeds 60 to 4200 RPM infinitely variable (Hi & Lo ranges)
Spindle taper R-8
Power longitudinal feed
Power vertical feed to knee
Kurt manual power draw bar
Mitutoyo KA 2-axis digital readout system with glass scales
Square ways on column and cross travel
Main motor 3 HP, 3 phase, 60 Hz, 220/440V (wired for 220V)
Floor space 67" x 63" x 71"
Machine weight approx. 3300 lbs
