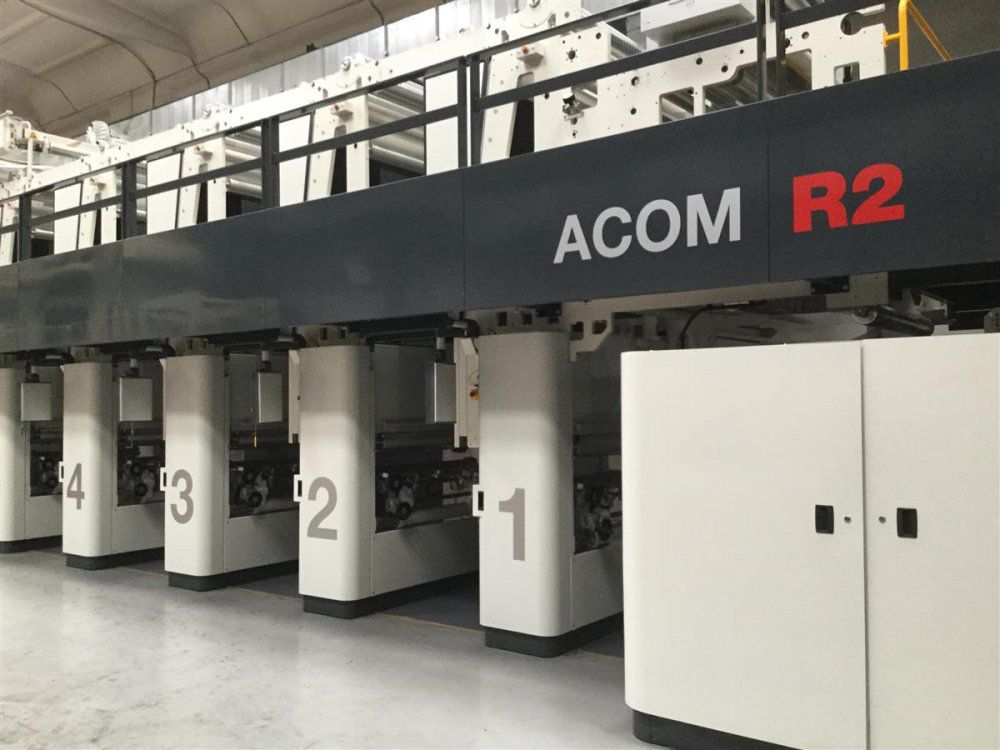

Acom, Comexi R2 1030 mm

Gravure printing machine
Number of colors 6
Print possibilities 6+0 , 5+1
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1050
Print width (mm) 1030
Print repeat range (mm) 450 - 920
Drying specifications :
Units 1- 5 single hood 1,8 mt , unit 6 double extended hood 2 x 2,2 mt including general exhaust fan and relevant air ducting
Thermo oil heat exchangers automatic air recirculation system with LEL control system make MSA, IR sensors

Drying heat surce Thermo oil heat exchanger
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1000
Videocamera BST ELTROMAT Web video Eltromat 500
Register controll ELTROMAT ( with reading heads with possibility to read triangular marks 10x6) with preregister system
Vyscosity control YES
Corona treatment AHLBRANDT
Print cylinders 200 cylinders included . Available in option more cylinders

Less than 6.000 hours of operation
Elecctrostatic assistance
Enulec on 6 print units + anti static bars on un and rewind
Turning bar before 6th station totally 12 trolleys ( 6 in machine + 6 spare ) totally 12 cross shafts ( 6 in machine + 6 spare )
Totally 12 doctor blades sets ( 6 in machine + 6 spare ) 12 rubber nip rollers ( 6 in machine + 6 spare )
4 expanding air shafts 6" 2 expanding air shafts 3 " Air compressor complete with drier and tank
