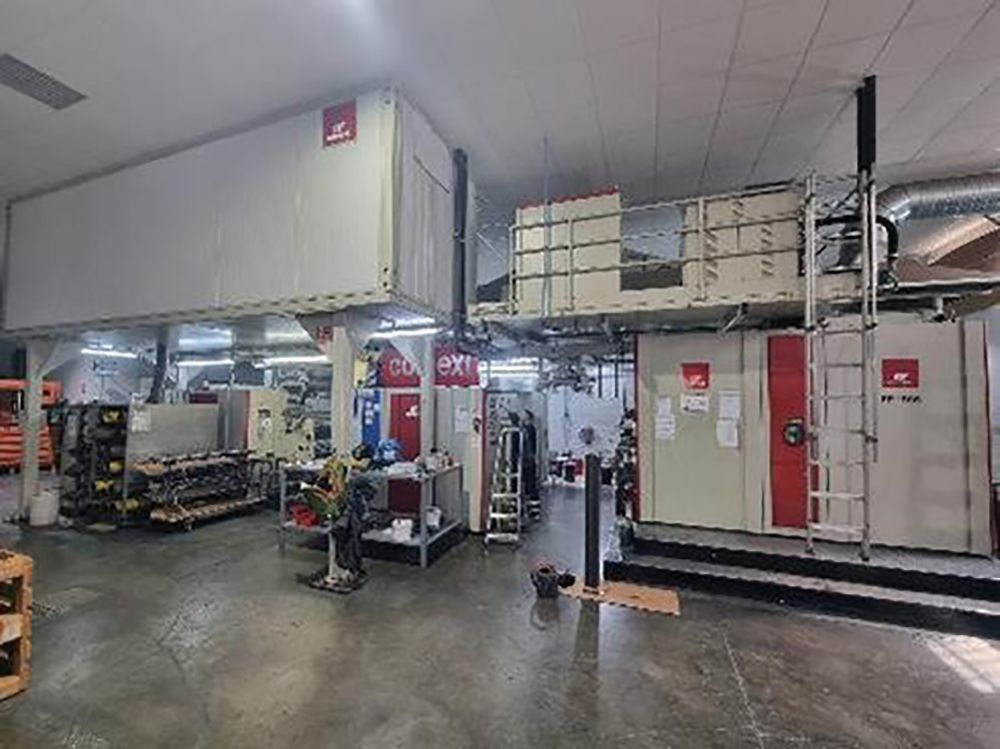

Comexi FP 1808 CNC 8 1220 mm

CNC Flexo central drum printing press
Number of colors 8
Print possibilityes 8+0
Overhaul/renovation Equiped with autoclean + vicosimeter retrofitted in 2005
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 680
Unwinder type Automatic Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Drying Electric
Videocamera Yes BST
Web guides BST webguide system 1 before printing unit 1 before REwinder
Vyscosity control Yes
Inking system Closed chamber doctor blades
Anilox 70 L 20 cm3, 100 L 15 cm3, 140 L 14 cm3, 160 L 12 cm3, 180 L 12cm3, 200 L 12 cm3, 200 L 11 cm3, 200 L 10 cm3,
300 L 7 cm3, 300 L 6.8 cm3, 180 L 6 cm3, 300 L 4.8 cm3, 320 L 3.8 cm3, 280 L 3.5 cm3, 400 L 3.5 cm3, 400 L 3.5 cm3, 400 L 3.5 cm3
Print Sleeves 350-360-370-380-390-400-410-420-430-450-460-480-490-500-520-530-550-560-570-580-600-620-640-650-660-680-690

A COMEXI flexographic unit, model FS, for in-line lacquering with the printer.
Lacquering speed: Between 200 and 300 m/min, depending on the weights to be applied and the side.
ELECTRONIC REGISTRATION: GRAFIKONTROL electronic brand registration device, which allows automatic registration between the printing of the central drum units and the lacquering of the group
Materials: PE (25 – 100 microns), PP (15 – 40 microns), Paper (up to 120 gr/m2)
Gears: 320x6, 340x6, 360x6, 380x6, 410x6, 420x6, 430x6, 480x6, 500x6, 520x6, 580x6, 600x6
