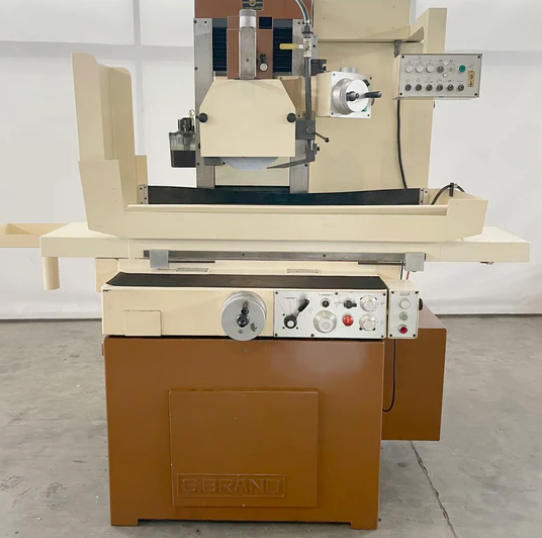

COMPACT 600

Type: Surface Grinder
Travel X: 680 mm
Travel Y: 270 mm
Table size: 840 × 250 mm
Grinding length: 600 mm
Grinding width: 320 mm
Distance from spindle center to table: 500 mm
Grinding wheel: 300 × 50 mm
Grinding wheel bore: 127 mm
Grinding wheel speed: 665–2,388 rpm
Table speed: 0–30 m/min
Automatic cross feed: 0–3 m/min
Grinding spindle motor: 7.8 CV
Power: 400 V, 3 Phase, 50 Hz
Electrical magnetic chuck: 600 × 250 mm
Coolant system
Paper filtration system
Central lubrication
Machine dimensions: 1,880 × 1,430 × 2,300 mm
Machine weight: 2,600 kg
