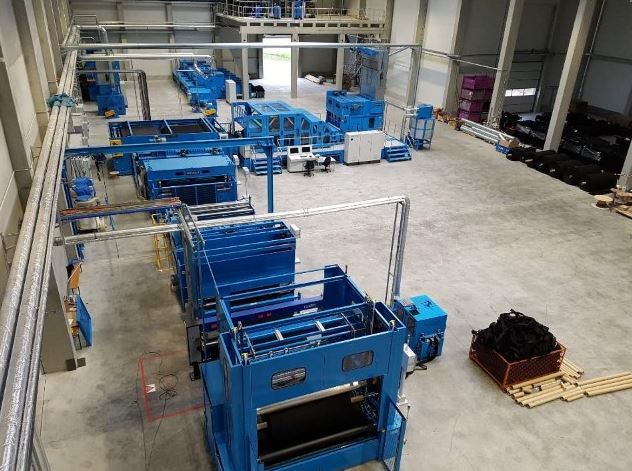

Complete Heavy Wadding Needle Punch Line

Consisting of:
· Fiber Opening with 4 Pan Blending system
· Double Doffer Card 2.5 meter working width
· Single Cross Lapper 2.5 meter in and 3.2 meter out
· Number 1 Pre Needle Loom 3.0 meter Downstroke 5000 needles
· Number 2 Needle Loom 2.8 meter Double Board Up Stroke 10,000 needles
· Number 3 Finish Needle Loom 2.6 meter Double board down stroke 12,000 needles
· Take up with Mahlo metering, unwinder, edge trimmer, accumulator & winder

=============
Fiber Preparation and Blending

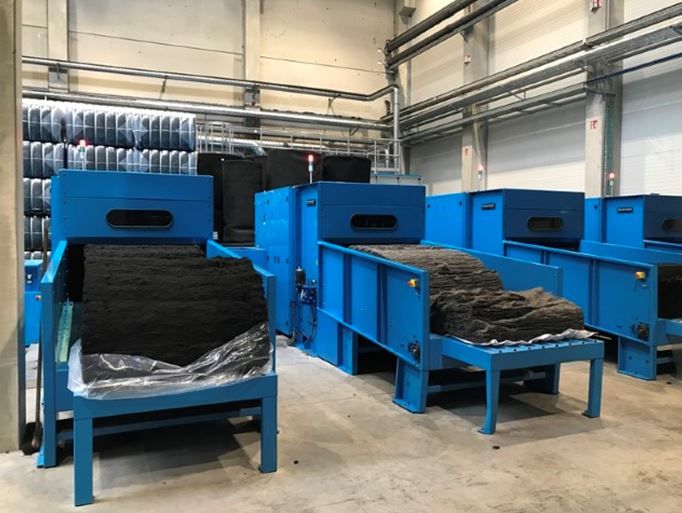

4 SamHwa Blending Feeders,
Type SH-BF60, width 1,5 m, 450 kg/h
1 SamHwa Cylinder Opener,
Type SH-CO60, width 1,5 m, 750 Kg/h
3 SamHwa Magnetic Traps,
Type SH-MGT 300, dia. 300 mm
1 SamHwa Mixing Tank,
Type SH-MT 250, Content 60 m³, 750 kg/h

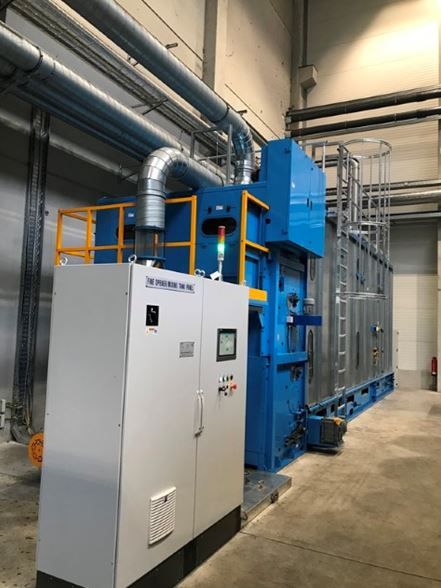

1 SamHwa Fine Opener,
Type SH-FO 60, width 1,5 m, 750 kg/h
Year 2017

Carding & Crosslapping

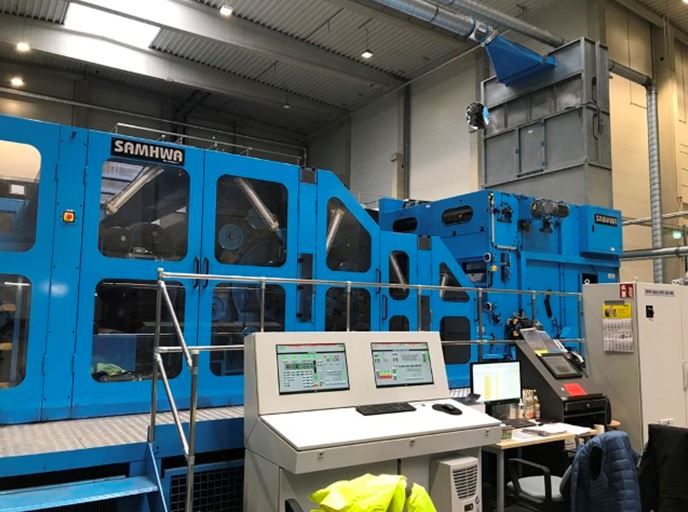

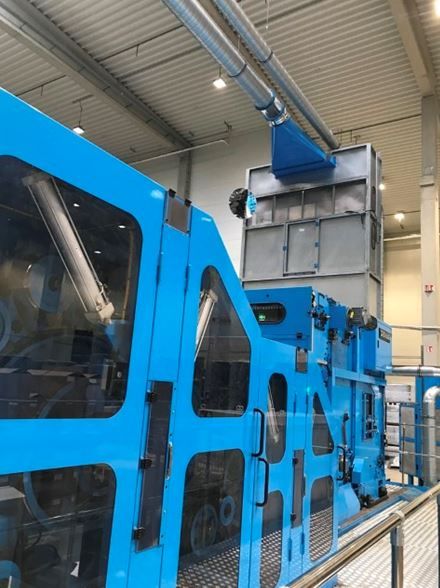

1 SamHwa Double Doffer Card,
Type SH-C100DD,
2.5 Meter working width 500 kg/h
Year 2017
With
Hopper Feeder,
Type SH-HF100

1 SamHwa Crosslapper,
Type SHCH4-3200,
Input 2,5 m –
Output 3,2 m, 80 m/min.
1 SamHwa Web Conveyor
With Feeding System,
Type SH-WC3000+SHWFS-3000
Year 2017

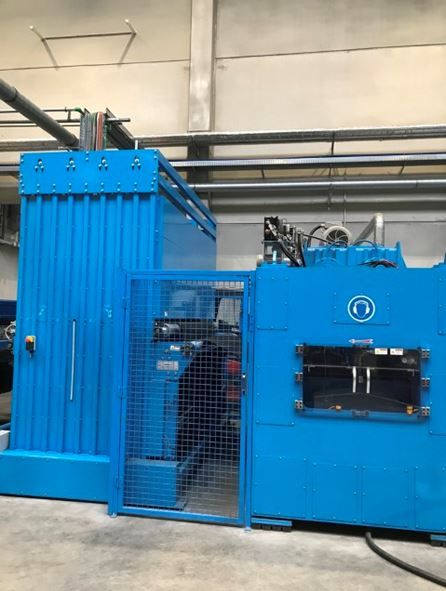

First Pre Needle Loom
1 SamHwa Needle Loom
Type SHS-DR3000,
Working width 3.0 Meter,
1200 strokes/min.
Single Board Downstroke,
4850 Needles,
55mm Needle beam strokes
Year 2017

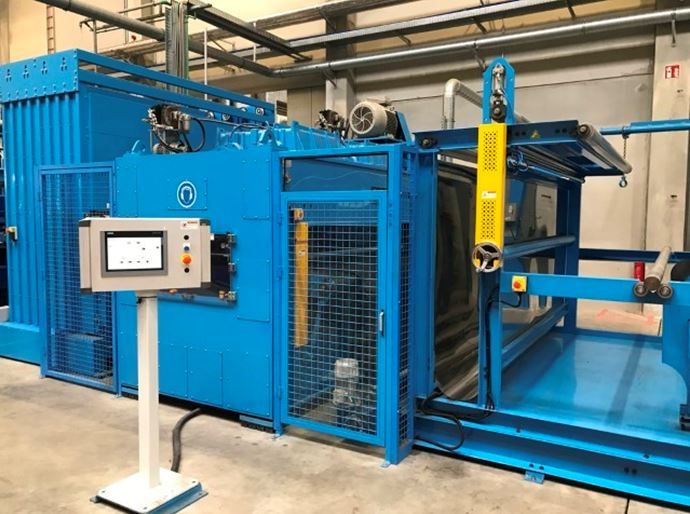

Second Needle Loom
1 SamHwa Needle Loom
Type SHD-UR2800,
Working width 2.8 Meter ,
1400 stroke/min.
Double Board Upstroke,
10.000 Needles,
40 mm Needle beam strokes
Year 2017

Finish Needle Loom
1 SamHwa Needle Loom,
Type SHD-DR2600,
Working width 2.6 Meter,
1400 strokes /min.
Double Board Downstroke,
12.000 Needles,
35mm Needle beam strokes
Year 2017

Take up Winding and Finishing

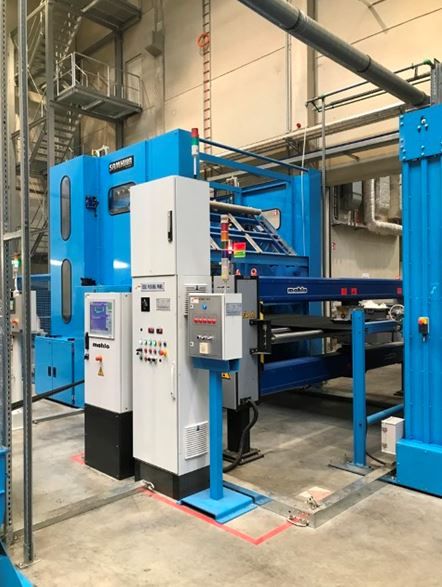

1 Mahlo Measuring Device,
Year 2017

1 SamHwa Unwinder,
Type SH-UW 2600,
Working width 2.6 Meter
Speed 13 m/min.\
Year 2017

1 SamHwa Accumulator,
Type SHDA-2600,
Working width 2,6 m
Year 2017

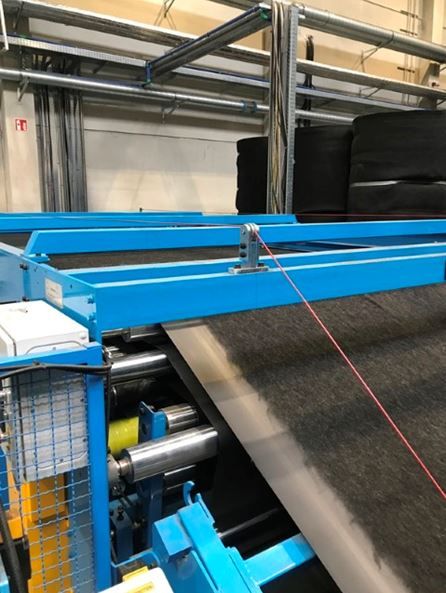

1 SamHwa Edge & Cross Cutter,
Type SHCC, MC-2600,
Working width 2,6 m
Year 2017

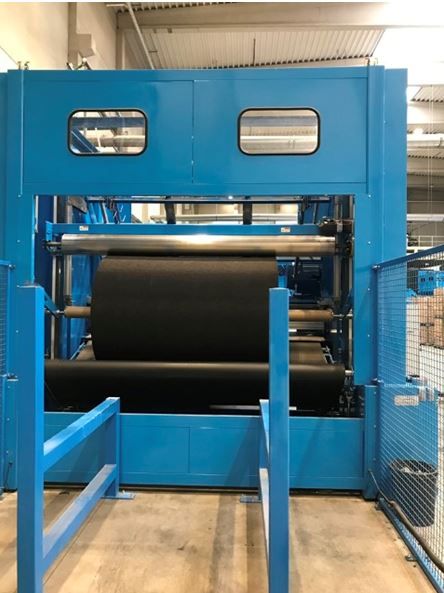

1 SamHwa Auto Winder,
Type SHAW-2600
with Metal Detector,
width 2,6 m
Year 2017

1 SamHwa Edge Picking Machine,
Type SHEP3-500,
width 500 mm
Year 2017
