COMPLETE LINE Inductotherm/Russ Brass Melting & Technica Guss Horizontal Billet Casting Line

COMPLETE LINE
Inductotherm/Russ Brass Melting & Technica Guss Horizontal Billet Casting Line

Acetarc furnace charging system (new 2014)
LNS chip conveyor
6 ton storage hopper
Skip bucket charging tower with bucket elevating system
2 Acetarc vibratory feeders
1 Acetarc vibratory rotary feeder
8 metric ton per hour charging system
Furnace #1: 1750 kW, 6 metric ton Inductotherm coreless melting/holding furnace (new 2013)
Furnace #2: 1500 kW, 6 metric ton Russ coreless melting/holding furnace
Furnace #3: 250 kW casting furnace
Furnace #1 specs: 1030°C max, 2451 kVA connected load
Crucible diameter: 984 mm
Coil diameter: 1220 mm
Clear crucible depth: 286 mm
Bath depth: 1122 mm
Furnace lining weight: 1770 kg
Water cooling system
Fume extraction system
Hydraulic unit

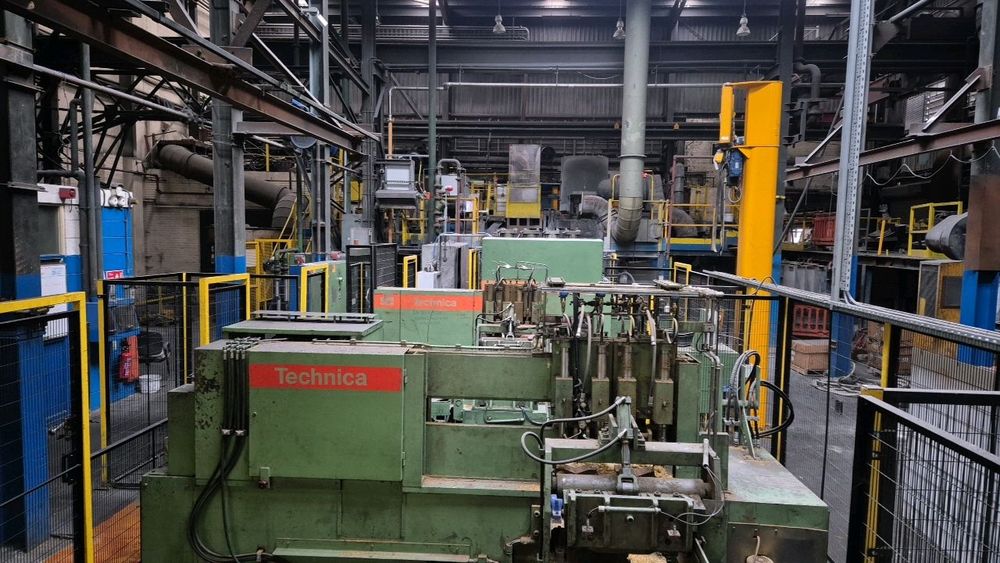

4-strand Technica Guss horizontal casting line (year 1976)
Technica Guss cooling powered pullout pinch rolls
2 Technica Guss ingot billet saws
Billet specs: 1000 mm x 152.4 mm diameter x 157 kg
Billet production rate: 20 billets per hour
Russel finish billet saw for 500 mm lengths
Entry and exit tables with billet delivery system
Batch alloy casting cell
Furnaces #4 and #5: 200 kW Birlec batch alloy furnaces
Brookes charging cart for casting 3 brass ingots
2000 kVA 12-pulse step-down transformer
Carter cooling tower for Birlec furnaces
Carter cooling tower for die cooling
Baltimore cooling tower
Camfil Farr gold series furnace extraction unit
Tepostop dry powder fire suppression system
Abroga spinner
Street overhead crane
