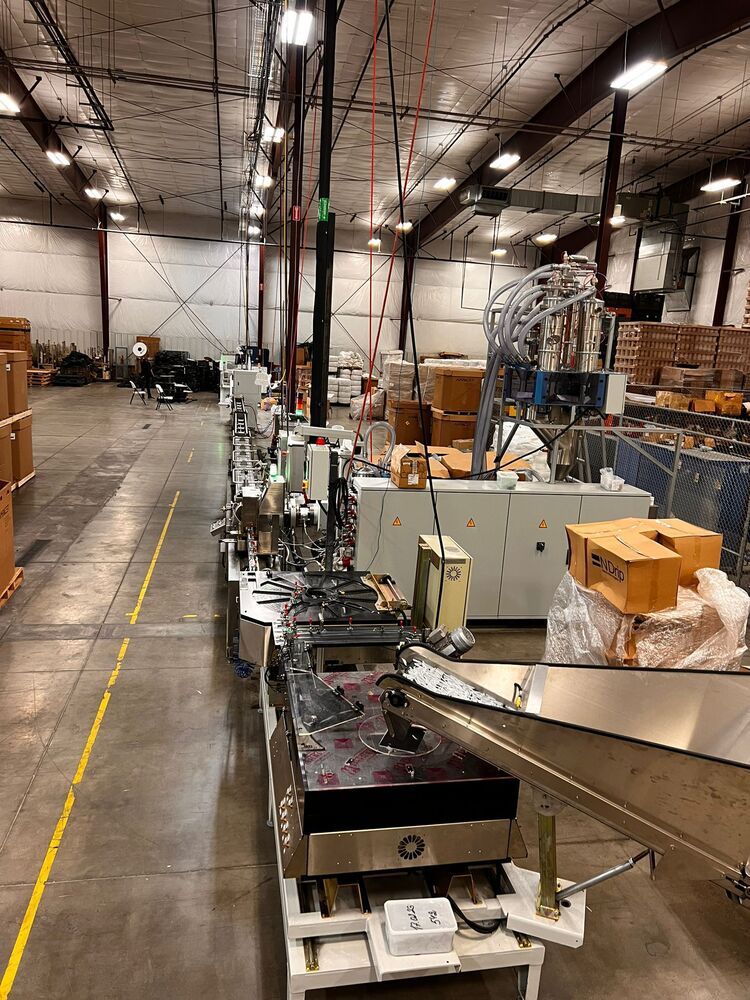

Complete Profile Line For Thin Wall Irrigation Drip Tubing

Make Mopline
Screw Size 75 mm MFT 2022
Air Cooled Yes
Number of Cooling Zones (5) Zones
Materials Processed HDPE / LDPE / LLDPE
Screw Output 300-400 Kg/Hr for LDPE and LLDPE
Screw Speed HDPE Din 100 / Output 250-320 Kg/Hr
Gearbox Zambello
Gearbox Motor Siemens AG
Horsepower 152 HP (114 kw)
Control Siemens Controller
Power Requirement 480v - 3ph
Screen Changer Manual 90mm with Heater / Manual (2) Screen Switch
Tooling Die Tools for Pipe Products 22mm / 33mm /
44mm & Die Head tools < 50 mm Diameter
Bowel Feeder IFF800 Dripper Elevator / Bowel Feeder / RT & LT / Insertion Machine / Connecton / Dripper Type / Any Flat Dripper
Bowel Feeder IFF800 Accumulator 23 Meter
Bowel Feeder IFF800 Speed Approximately 400-600 Dripper /
Minute Vacuum Tank 500 Stainless Steel Const. / Vacuum Sensors /
PLC Controller
Cooling Tanks (3) Stainles Steel Cooling Tanks
Cooling Tank Lengths (ea. / ft.) 11' 5.79"
Minimum Spacing 10cm
Perforator Options Driller / Electrical / Air
Controller PLC with Computer / Screen
Rate 50m to 200m/Minute
Allowable Sizes Max Coil Width 35 cm / Diameter 55 cm
Thinkness Variations 9 mil (22 mm) / 5 mil (12 mm)
Diameter Sizes Capable of Producing Pipe Diameters as
Small as Spaghetti-Sized / Up to Approximately 45–50 mm
/Depending on Selected Thickness

Features
Automatic Flipping & Cutting
Bowel Feeder Mdl. IFF800
Deduction Error Camera
Digi Tax Controller
Haul Off Model 141
Inlet with Air Knife Dryer (2-Installed) Dryer
Modem Connection for Online Support
Parison Programmer with Independent Power Pack / Amplifier Card
and Control System Through
Perforator Model 172
Pipe Coiler Model 191 Auto Pull & Tension Unit
Steel Hopper
Touchscreen
(2) Doors
