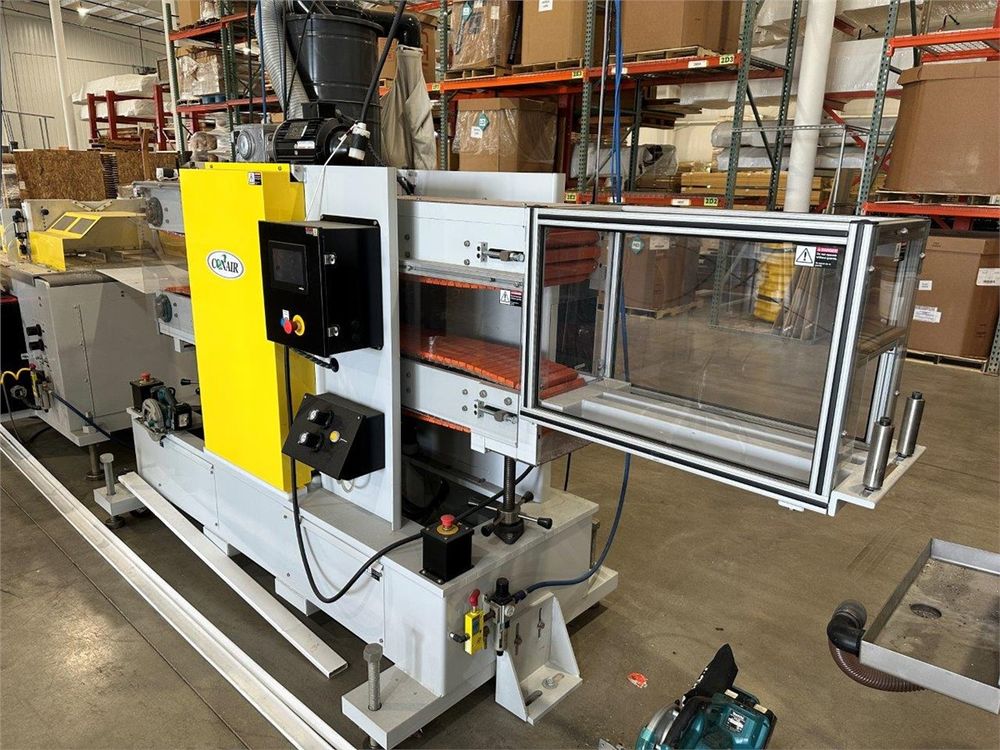

Conair 10" x 84" Cleated Belt Puller

10" x 84" Conair Cleated Belt Puller
Cleat Width: 10 inches with 14
inches through clearance.
Cleat Contact Length: 76 inches.
Maximum Opening: 9 inches with standard 1-inch cleat.
Cleat Type: 1-inch thick, 65A durometer cleated caterpillar
type traction belts; roller chain runs on support platforms.
Features a pneumatically controlled pendulum-mounted
upper traction belt, manual height adjustment on the
lower traction belt, and adjustable product entry guide rollers
with bearings.
Frame: Heavy-duty, all-steel welded construction with
4-inch swivel casters and 1.250-inch floor lock jack screws.
All parts are plated or painted to resist corrosion.
Drive: Two 3hp closed-loop vector drives for
improved speed regulation and an increased 50:1 speed range.
Cleat Speed Range: 1 to 30 feet per minute.
Direction: Right to left.
Voltage: Wired for 460/3/60 power supply.
Center Height: 42.25 inches ±2 inches.
Paint: Tele gray - RAL 7047.
Front Operator Station: Eye-level control box with
hinged rear access door, e-stop, lockable disconnect,
and HMI touch screen control for start/stop, digital feet per minute,
digital load readout, and speed functions.
Includes pneumatic clamping pressure and balance controls
with pressure gauges.
Remote Operator Station: Stop pushbutton,
10-turn speed potentiometer, digital speed indicator calibrated
in feet per minute with 100 feet of cable.
