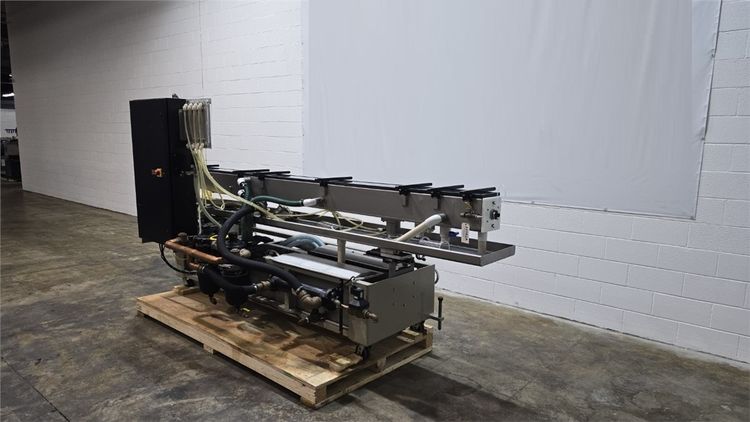

Conair 11.5' Long Vacuum Sizing Table

11.5' Long Conair Vacuum Sizing Table,10' Long Vessel with 8" x 8" Cross Section
Model: HT104C-11.5-4
42" Centerline Height
4 Compartments: 4' Long Vacuum, 6' Long Vacuum, 10" Flood Seal, 8" Air Wipe
Variable Speed Vacuum Blower, 0 - 52" H2O
1 HP Water System Centrifugal Pump
230/3/60, 43.2 FLA
Recirculating Cooling Water System w/ Reservoirs And In-Line Heat Exchanger
Tube And Shell Thermal Transfer Products Heat Exchanger,
Model A-824-4-4-F-BR, S/N: 599941
Shell: 300 PSI, Tube: 150 PSI, Temp: 300°F
Built-In Water Manifold Feeding Spray Bars And Tooling
Designed To Accept Chiller Connections Through Plate Heat Exchanger
Precision Automatic Vacuum Control, Start/Stop Recirculation Pump, Start/Stop Vacuum Pump, Coarse/Fine Adjustments
E-Stop, Athena Water Temperature Gauge, Dwyer Rotameters
1" Water Supply
Right To Left Operation
Approximate Dimensions: 144" L x 39" W x 73" H, 2,475 LBS
