Conair HTMP-12-4

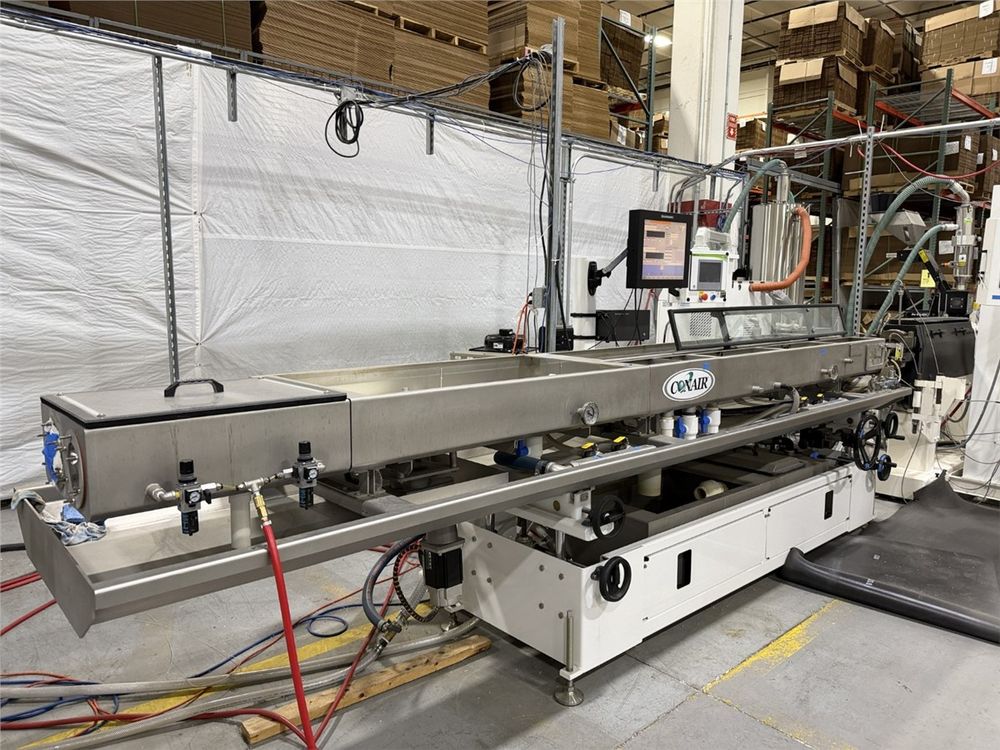

12’ Conair HTMP-12-4 Multipass Cooling Tank
Up To .500” Diameter Tubing
8’ Vacuum Chamber
12’ Multipass Open Top Cooling Chamber, 24” Wide
11 Gauge Stainless Tank
Variable Speed Vacuum Blower Capable If Up To 135 Inches Of Vacuum
1 HP Recirculation Pump For Vacuum Tank
2 HP Recirculation Pump For Cooling Tank
Approximate Weight And Dimensions: 16’ L x 55” W x 72” H, 3,000 LBS
460/3/60, 13.9 Amps
Rated To Cool Up To 150 LBS/HR Of Tubing/Profile
18” Long Air Wipe Chamber
Stainless Steel Reservoir
Stainless Steel Heat Exchanger
Right To Left Operation
42” Centerline +/- 2”

Additional Options Installed:
PAVC Plus Automatic Vacuum Control With Touch Screen HMI
Stainless Steel Plumbing Package – No Copper Or Brass
Servo Driven First Pass Roller
Trojan UV Max Ultraviolet Water Treatment
Minntech 5 Milcron Filter
Stainless Steel Flow Meter
New In 2002
