Conair MSBHI-24-12

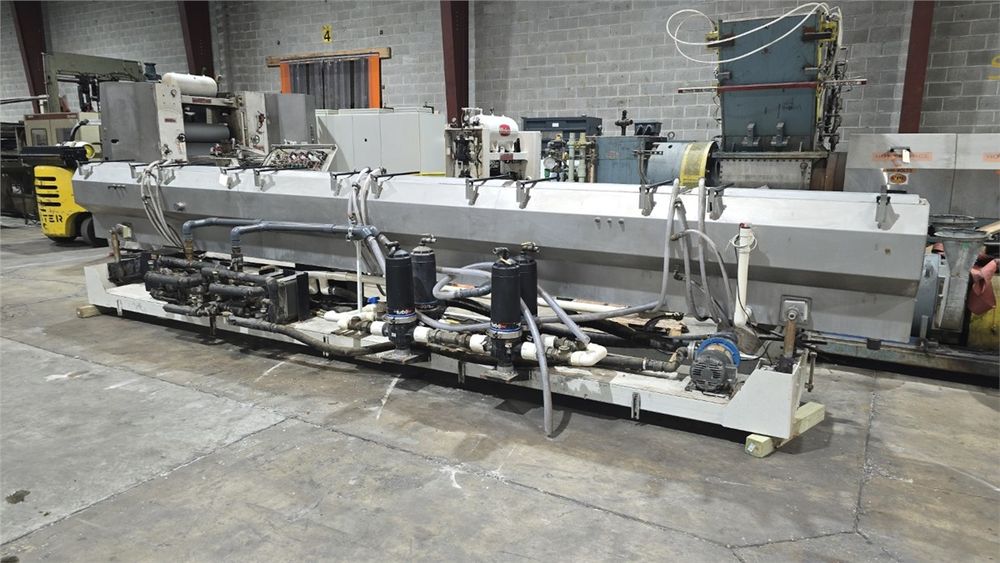

24' Long x 12" Wide Conair Vacuum & Spray Cooling Tank
Integrated Stainless Steel High-Intensity Spray Tank
with Built-In Water Reservoir24' Long Tank
12" Useable Cross-Section Width
Centerline Height: 39" Adjustable ±3"
Water Requirement: 100 GPM Through 1" NPT Main Supply
Operating Spray Pressure: 30-45 PSI @ Nozzles For Full 360° Coverage
7.5 HP Baldor / G&L Pumps Model SSH Recirculation/Spray Pump
Size: 1.5 x 2.5–6, Impeller Diameter: 6-1/16", Goulds Pumps (ITT).
Stainless Steel Construction w/ Electronic Level Control and
Solenoid Fill Valve
Integrated Water Manifold w/ Individual Ball Valves for Zonal Cooling
Screw Jack Tank Rise w/ Manual Height Adjustment
Motorized Forward / Reverse Travel Via Gearbox And
Feed Screw 36" Actuator Stroke
Five Rows Of High-Intensity Sprayers For Single Pass CoolingFour Turbo Disc Filters with 3" Housings Rated For 220 GPM
4 Brazed-Plated Heat Exchangers (BPHEs) To Isolate Clean Spray/Recirc Loop From Plant Loop
31 Gallon Integrated Reservoir Capacity w/ Auto-Fill Control
Roller Rack Assembly for Solid Profiles Up To 12" Wide or Pipe Up To
12" Diameter
460/3/60, 21A
Approximate Dimensions: 25' L x 53" W x 60" H
