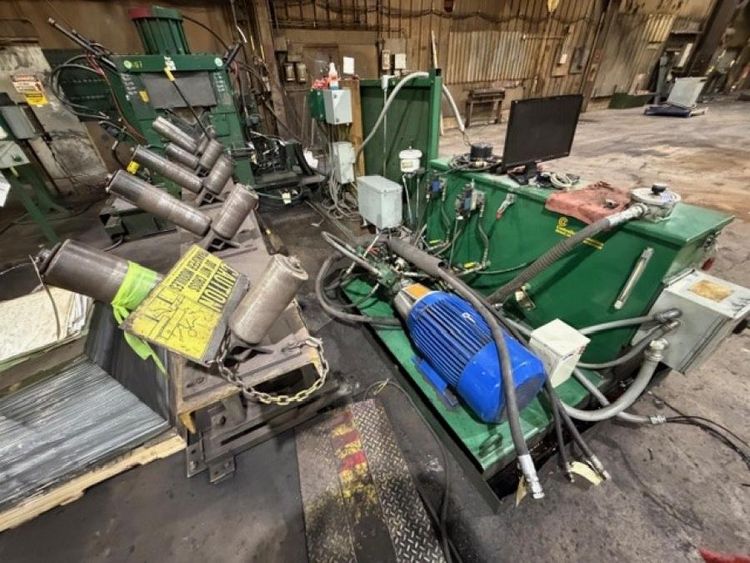

CONTROLLED AUTOMATION ABL-100

Capacity Single Shear Cut: 6" x 6" x 1/2"
Maximum Angle: 8" x 8" x 3/4"
Minimum Angle with Pinch-Wheel: 1" x 1" x 0.125"
Minimum Angle with Probe: 1.5" x 1.5" x 0.25"
Maximum Flat Bar: 12" x 1"
Minimum Flat Bar with Pinch-Wheel: 0.25" x 2"
Minimum Flat Bar with Probe: 0.25" x 2.25"
Maximum Channel: 12"
Minimum Channel: 3"
(2) Punch Heads: 115 Ton each
Measuring System: Length Movement Probe
Height of Machine on Stand: 40"
Height of Machine without Base: 27"
Height of Conveyors: 40"
Electrics: 460V/3-Ph
Upgraded Software
Updated Drive for X-Probe
New Windows 10 Computer
Single 115 Ton Punch Units on each of the two legs
Double Cut Shear Capacity of 8" x 8" x 3/4"
Double Cut Shear Capacity of 8" x 3/4"
(3) Sectioned Powered In-Feed Conveyors Front 240"
(3) Sectioned Powered In-Feed Conveyors Mid 240"
(3) Sectioned Powered In-Feed Conveyors Machine Side 222.5"
(5) Let Down Arms
(4) 10' Non-Powered Outfeed Conveyors totaling 702.5'
Additional 40" Split in between third 10' Exit Conveyor
Length Movement Probe
Large Amount of Punches and Dies
New Shear Blades
Manuals
