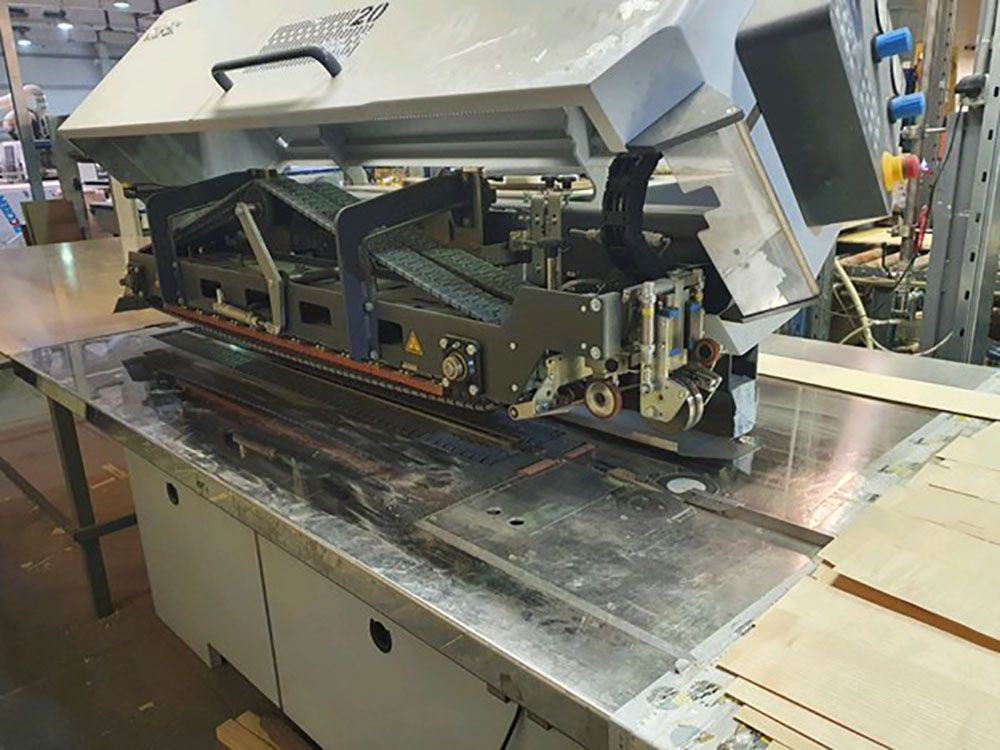

Cooper FLI 1000 Edge gluing machine
Ref :
2771067-15-MT
Condition :
Used
Manufacturer :
Cooper
Model :
FLI 1000
Short Description :
Edge gluing machine
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
RUSSIA and Central Asia
RUSSIA and Central Asia
Edge gluing machine with built-in glue application unit for butt jointing of veneer with thickness from 0.35 to 2.5 mm.
Technical specifications:
Working width: 1000 mm
Veneer thickness: approx. 0.35 – 2.5 mm,
Min. veneer length: approx. 300 mm
Min. width of veneer strips: approx. 40 mm
Feed speed (continuously adjustable): approx. 12 – 55 m/min
Heating zone length: 1450 mm
Heating zone width: 12 mm
Heating temperature: approx. 200°C
Power supply parameters: 400 V, 50 Hz, 3 phase
Total power load: 6.9 kW
Compressed air consumption: approx. 5 l/min
Net weight: 1,500 kg
