1/1

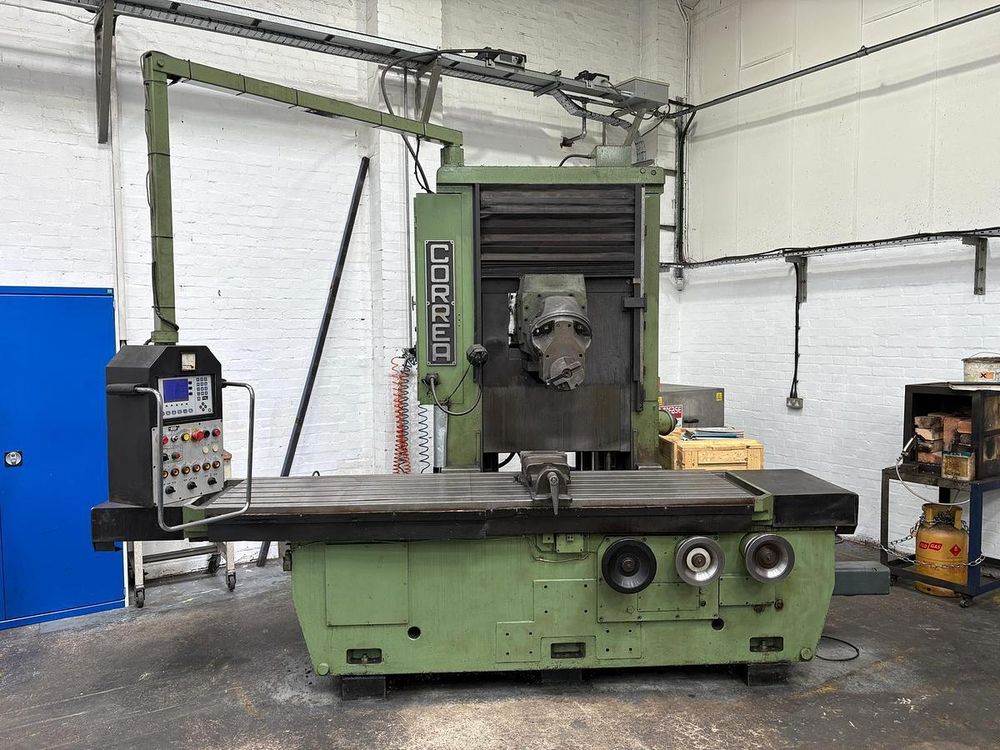

Correa A-20-25 2000 rpm
Ref :
2785002-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
A-20-25
Spindle Speed :
2000 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table Size: 2500 x 700 mm
X-Axis Travel: 2200 mm
Y-Axis Travel: 1000 mm
Z-Axis Travel: 1000 mm
Spindle Nose to Table: 50 – 1050 mm
Spindle Centreline to Table: 88 – 1389 mm
Spindle Speed Range: 40 – 2000 rpm
Spindle Speed Steps: 18
Spindle Taper: ISO 50
Feed Range: 5 – 1500 mm/min
Rapid Traverse: 3000 mm/min
Spindle Motor Power: 15 kW
Machine Weight: 9500 kg
Pendant Control
Digital Readout (DRO)
Universal Angular Double Swivel Milling Head
Hydraulic Speed Change
Ball Screws Longitudinal Axis
Ball Screws Cross Axis
Ball Screws Vertical Axis
Dual Manual Controls
Tooling
