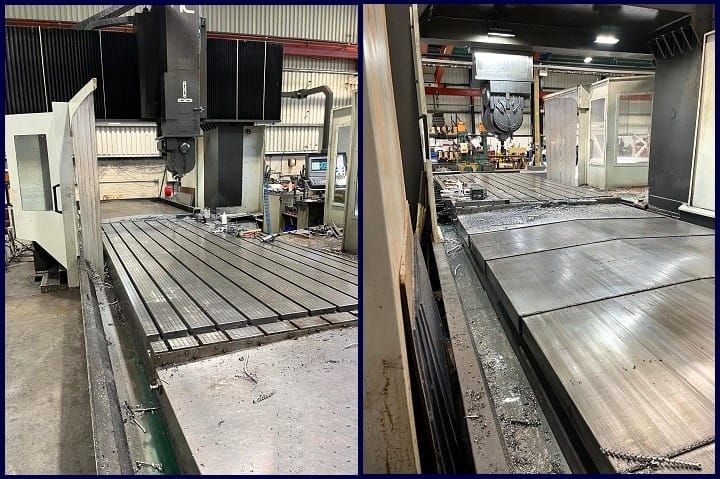

Correa FP40/40 5 Axis

Retrofit: 2026
X axis traverse: 4000 mm
Y axis traverse: 3000 mm
Z axis traverse: 1000 mm
Vertical capacity: -50 / 950 mm
Distance between columns: 2500 mm
Table dimensions: 4500 x 2000 mm
Number of T slots: 11
T slots size: 22 mm
Rapid feed X/Y: 15000 mm/min
Rapid feed Z: 12000 mm/min
Feedrate: 7000 mm/min
Milling head: 2-axis continuous head C5E
Spindle speed: 4000 rpm
Spindle power: 37 kW
Spindle taper: ISO 50 (DIN 69871)
Pull stud standard: DIN 69872
Tool clamping system: Hydraulic
CNC control: HEIDENHAIN TNC-i530
Electronic handwheel: HR-410
Coolant system: External
Guarding: Sliding doors + perimetral wire-mesh fence
Maximum table load: 10000 kg
Machine weight: 35500 kg
Machine dimensions: 10923 x 6170 x 5250 mm
