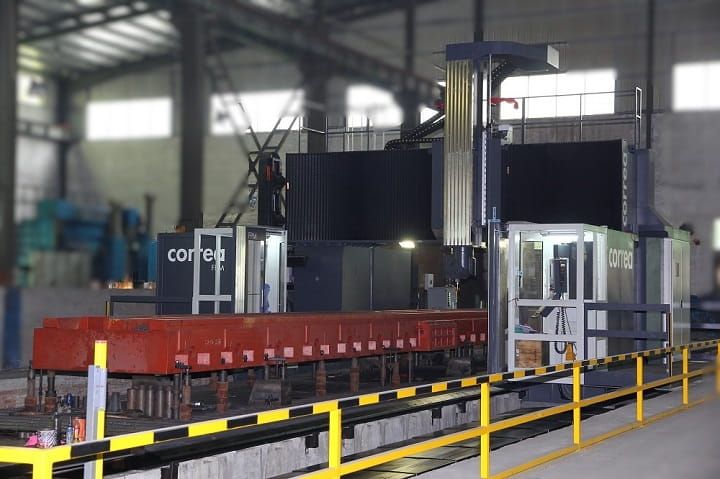

Correa FPM50/200 3 Axis

Retrofit: 2026
X axis traverse: 20000 mm
Y axis traverse: 3800 mm
Z axis traverse: 1250 mm
Rapid feed X/Y: 15000 mm/min
Rapid feed Z: 12000 mm/min
CNC control: HEIDENHAIN TNC-530
Automatic tool changer: ATC-120 (120 tools capacity)
Milling head: Auto-indexing B&C universal UAD head (0.1°)
Tool clamping system: Hydraulic
Spindle speed: 6000 rpm
Spindle power: 27 kW
Spindle taper: ISO 50 (DIN 69871)
Pull stud standard: DIN 69872
Coolant system: External and internal high pressure through spindle
Chip conveyor: 2 longitudinal hinge type
Electronic handwheel: HR-510
Control panels: 2 switched panels (both sides)
Guarding: Door with platform access + perimetral wire-mesh fence
Maximum table load: 15000 kg
Machine weight: 150000 kg
Machine dimensions: 30190 x 8865 x 5850 mm
