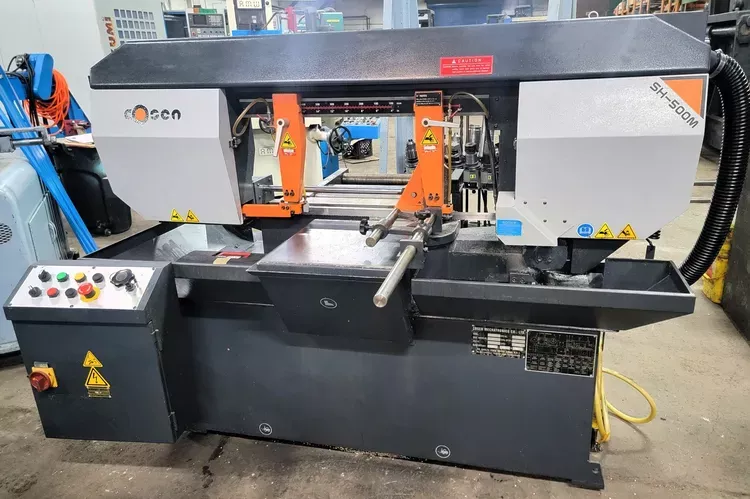

Cosen SH-500M Swivel Head Semi Automatic

Swivel saw head allows miter cutting from 0° to 60°
Hydraulic cylinder with precision ground hinge support
Hardened worm gear for durability
Hard stops at 0°, 45°, and 60° for quick angle setup
Cutting Capacity 0° Round: 13"
Cutting Capacity 0° Rectangular: 11" x 17.3"
Cutting Capacity +45° Round: 11.8"
Cutting Capacity +45° Rectangular: 11" x 9.4"
Cutting Capacity +60° Round: 8.6"
Cutting Capacity +60° Rectangular: 9.4" x 8.6"
Coolant Tank Capacity: 7.9 Gallons
Hydraulic Tank Capacity: 2.08 Gallons
Blade Speed 60Hz: 75, 117, 166, 47 FPM
Blade Size (LxWxT): 13' 7" x 1" x 0.035"
Blade Motor: 3 HP
Coolant Motor: 1/8 HP
Workbed Height: 32.3"
Weight: 2,079 lbs
Floorspace (LxWxH): 74" x 107" x 82"
Blade drive with variable pulley system
Adjustable flood coolant system
Motor-driven synchronized wire blade brush
Carbide blade guides and bearing for support
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Adjustable down feed control
Adjustable material stop
Saw head automatically raises after each cut
