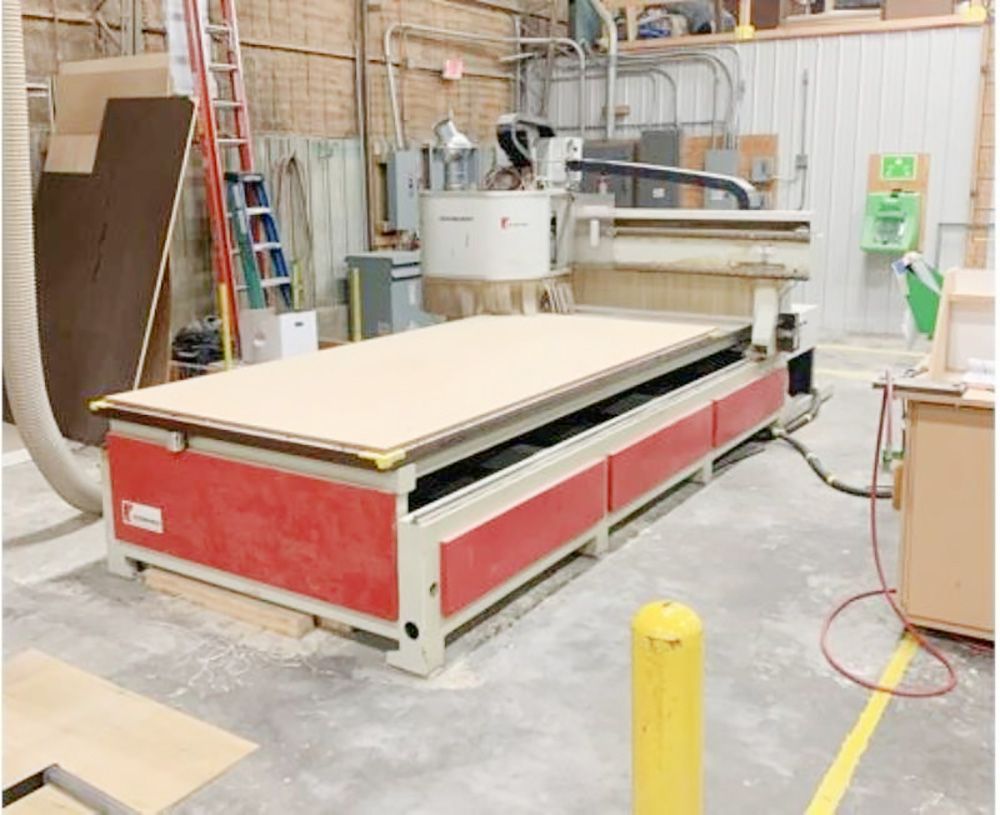

Cosmec Conquest

5x10" CNC Router
220 V, 60 Cy, 3 phase
Includes Tool Changer & Boring Head
62" x 122" Fixed table
Moving gantry design in a front-to-back configuration
2-Zone Phenolic vacuum table supported by a (2) 10 HP vacuum pumps and pop-up pins for part location
10 HP router spindle, ISO 30 type ATC spindle, variable spindle speed from 800 - 18,000 RPM, 8 position tool carousel
14 spindle boring block, 10 vertical 4 horizontal spindles
Machine tool camp control with color LCD screen, hard drive, 3 axis linear and circular interpolation, network capable with a user friendly operator interface
Incorporate brushless, closed loop Servo motors driving precision ballscrews, and ride on STAR linear guideways
with an automatic lubrication system servicing the way and ballscrew bearings.
Assorted tool holders with collet and covernut, documentation and vacuum pumps.
225" L x 92" W x 95" H
Weight: 9,800 lbs.
