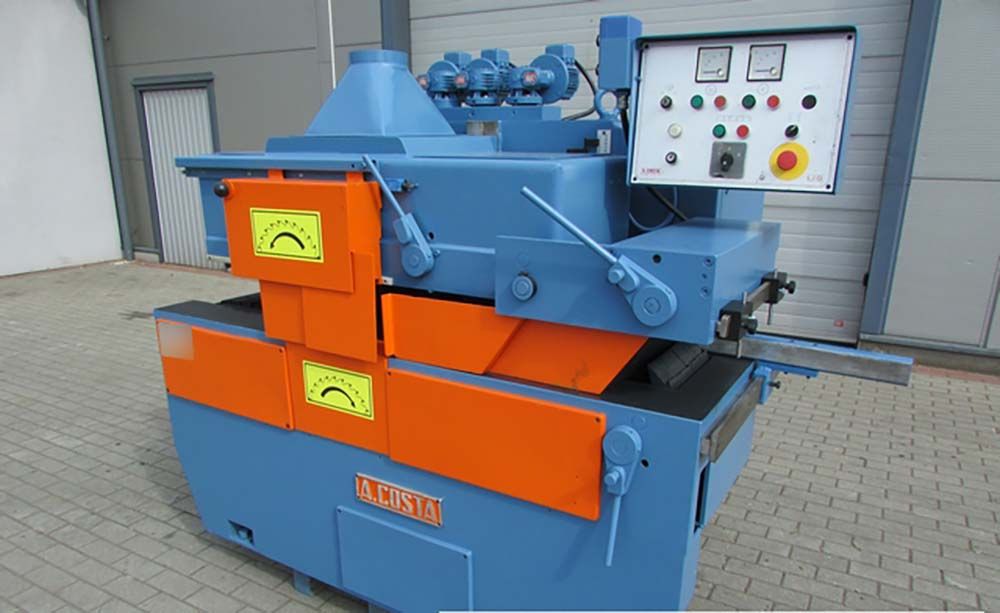

Costa LINCE/2/40 250/140 Two-shaft multi-saw

TECHNICAL PARAMETERS:
Cutting width 250 mm
Cutting height 140 mm
Motors 2 x 30 kW
Feed motor 1.1 kW
Height adjustment motor 3 x 0.18 kW
Max. blade diameter 250 mm
Spindle diameter 2 x 60 mm
Collet diameter 2 x 80 mm
Crawler width 270 mm
Total power 63 kW

Feed adjustment
Feed speed 4-40 m/min
Minimum workpiece length 600 mm
Electric height adjustment
Electric shaft height adjustment
Four upper pressure rollers
Pneumatic clamps
Four anti-ejection pawls
Central lubrication
Connection diameter 2 x 160 mm
Spindle speed 5100 RPM
Machine dimensions (L/W/H) 210 / 160 / 180 cm
Weight ~ 2650 kg
