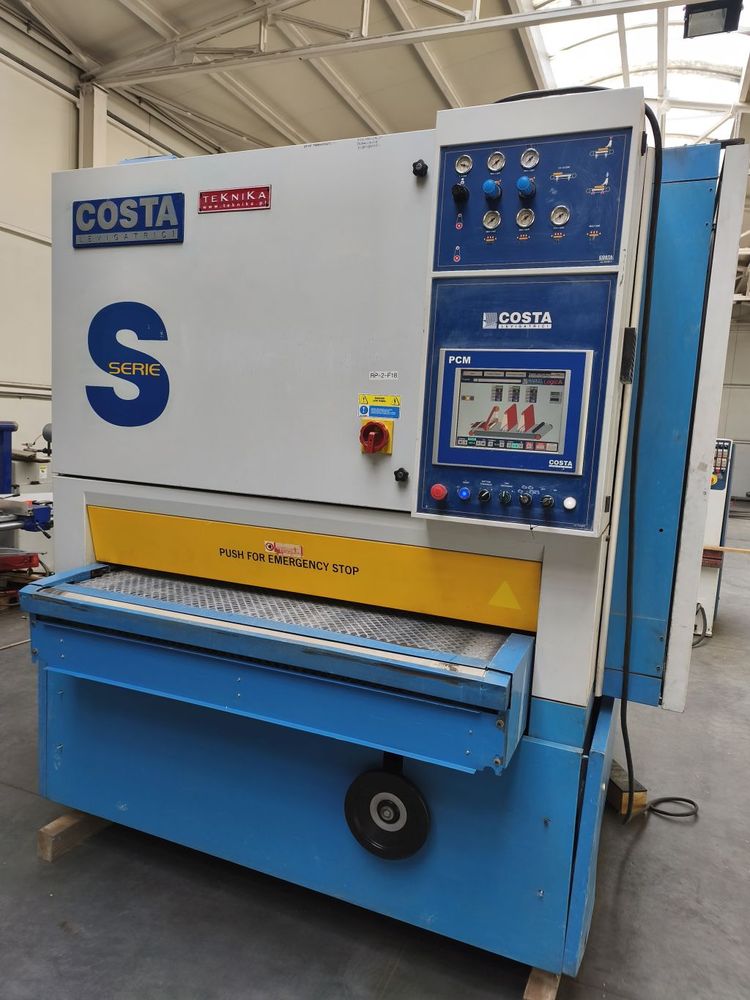

Costa SA1 TRITT 1350

Wide Belt Sander with Cross Belt
Technical Specifications:
-Width Working width: 1350mm
- Abrasive belt length: 2620mm
- Workpiece thickness: 3-160mm
- Oscillating abrasive belts with photocells and a photocell cleaning airflow
- Fixed working table height (suitable for production line operation): 900mm
- Lifting motors for the working units with a 0.37-0.75kW gearbox
- Feed speed: 4-20m/min
- Conveyor belt with vacuum, fan motor power: 3kW

The machine is equipped with:
1st unit - Cross belt
2nd unit - Electronic pad
3rd unit - Electronic pad
Vacuum table
1st unit has 2 sanding speeds
2nd and 3rd units with continuously variable sanding belt speed
Conveyor belt with continuously variable speed
Total power consumption: 44 kW.
