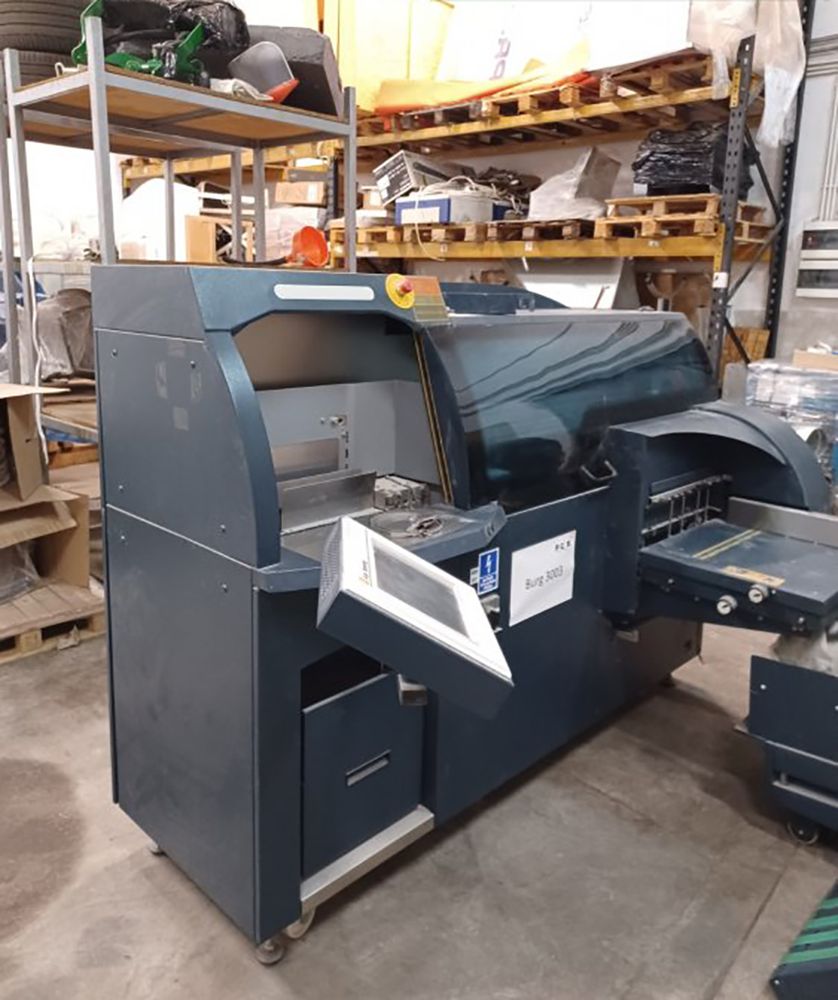

CP Bourg BB 3002

Designed for the production of book blocks, both from individual sheets and from folded notebooks.
Book format: min. 100 x 100 mm - with cover, max. 320x 385 mm
Block format: min. 60x 90 mm, max. 320x 385 mm
Conveyor (belt lining of finished products) (WxLxH : 52cm x 125cm x 46cm)
Book thickness: min. 1 mm, max. 60 mm
Cover format: min. 200 x 100 mm, max. 710 x 395 mm
Cover weight: max. 80-300 g / m2
Cover stack height in the automatic feeder: 80 mm
Capacity: approx. 600 pcs / hour
Adhesive temperature: min. 140 degrees C, max. 180 deg. C
Time to prepare for work: (time to heat up the adhesive to 140 degrees C) 25 min.
Power supply: 3 phases, 380 V
Power consumption: 4 kW
Dimensions of the machine with conveyor: (L x W x H) 2.02m x 2.41m x 1.50m .
