CS 1000 CUTTING MACHINE
EUROPE (Western and Northern)

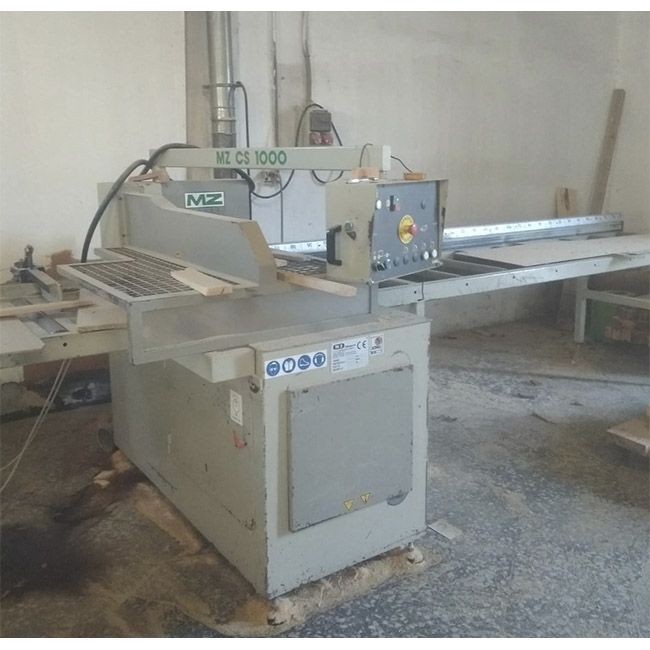

CUTTING MACHINE MZ MOD. CS 1000
Very robust wood CUTTING MACHINE ideal for cutting boards or planks.
Its use is very simple: the piece is placed up to the stop that indicates the cut measurement and it is pressed to hold the piece and make the cut.
DISPOSE OF:
Idler roller right entry table: 650 mm wide X 3000 mm long
Left start table. It has 3 stops: 2 tires that are selected from the control panel and another fixed manual.
The measurement of the output table: 2000 mm long with rollers x 650 mm wide
TECHNICAL CHARACTERISTICS:
Maximum cutting width dimensions: 1000 mm
Maximum cutting height dimensions: 100 mm
Saw diameter: Ø 550 mm
Main motor power: 9.2 KW
Machine weight: 1000 kg
