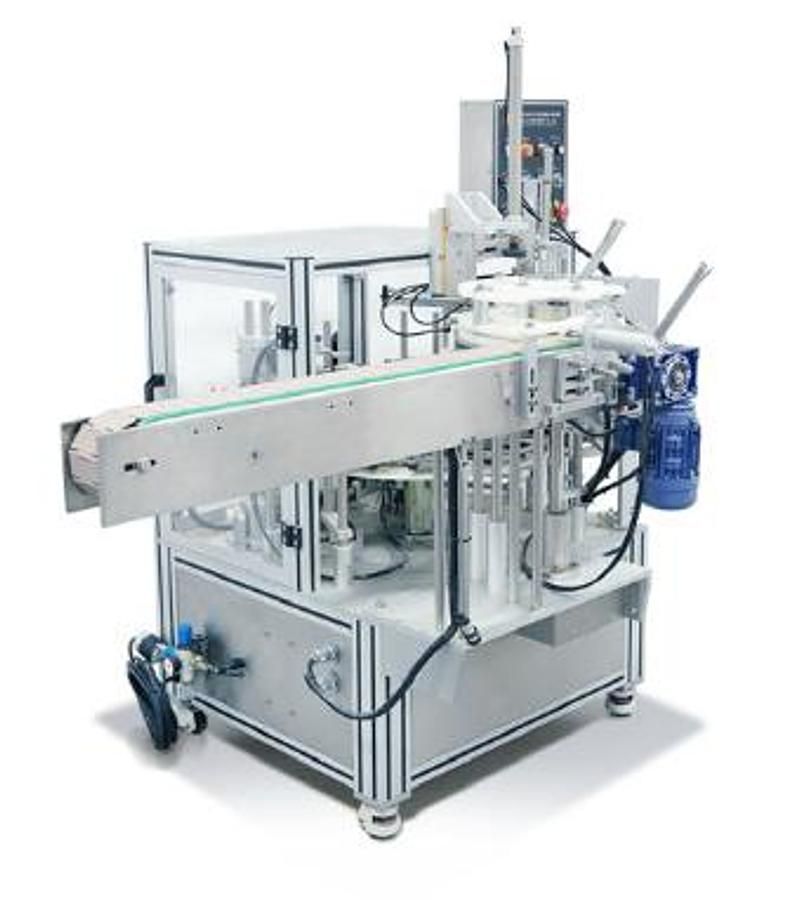

CSC50A, Automatic Cartoning Machine

Automatic Cartoning Machine with conveyor and bottle
insert station. Uses auto erect bottom
and fold and tuck top cartons. Rated from 20~60
cartons per minute depending upon carton size and bottle shape.
Included 36" variable speed
conveyor, hot stamp imprinting station and leaflet insert station.
Currently set up for 65 x 65 x 140mm cartons.
Carton size range: 20-80W x 20-80D x 60-200H (mm) (with correct tooling)
Air Consumption: 90L/min @ 6 Bars
Machine Dimensions: (LxWxH) 2375x1310x1288 (mm)
Machine Weight: 450KGS
