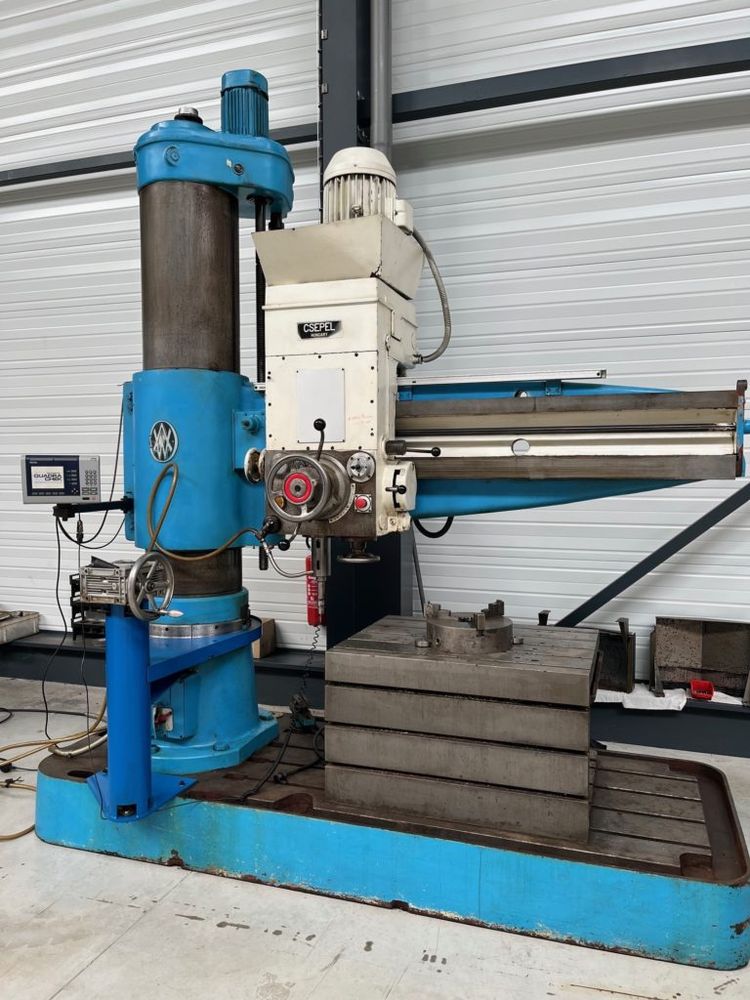

Csepel RF75-1750 1 900 RPM

CSEPEL RF75-1750
Year : 1974


Max drilling diameter 75 mm (Steel)
Max Tapping diameter M60
Arm length 1750 mm
Vertical stoke 950 mm
Rotation of arm 0° à 180°
Min /Max distance spindle to base plate 370 / 1 700 mm
Quill stroke 380 mm
Mores taper N° 6
Spindle speeds 19 – 1 900 RPM
Cutting feeds 0,047 – 2 mm/rev
Base plate surface 1 100 x 2 050 mm
Machine height 3 450 mm
Weight 6 000 kg

Equipped with :
Year : 1975 / modernised in 2013
RADIAL 2 axes programmable DRO (bolt hole circles)
Heidenhain probe
Gear reducer for angular movement of arm on column with encoder
Cube 1000 x 800 x 600 mm
