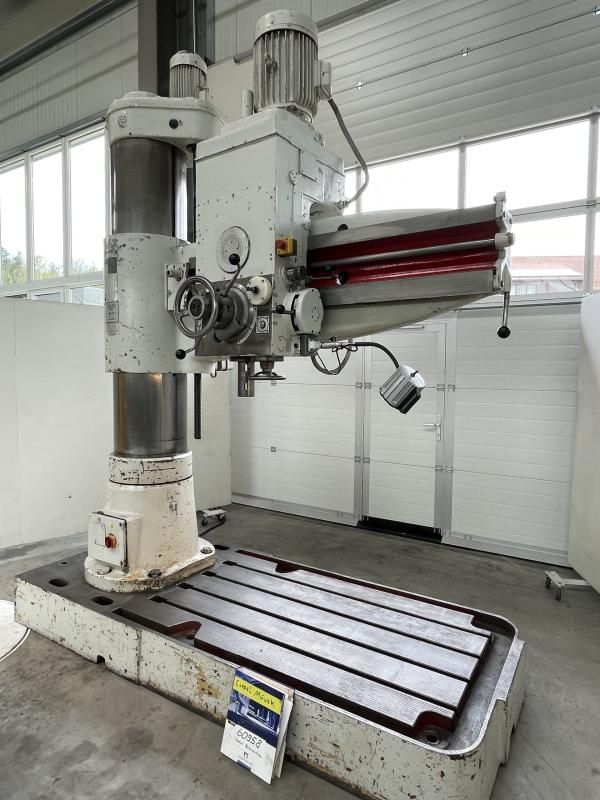

Csepel RFh 75 / 1500 1900 rpm (21 steps)

Drilling Capacity in Steel: Ø75 mm
Drilling Capacity in Cast Iron: Ø90 mm
Spindle Taper: MK5
Nominal Arm Reach: 1500 mm
Maximum Spindle Reach: 1500 mm
Minimum Spindle Reach: 440 mm
Spindle Nose to Table Distance: 370–1700 mm
Arm Vertical Travel: 950 mm
Table Size: 1800 × 1100 mm
Column Diameter: 450 mm
Quill Travel: 380 mm
Spindle Speed: 19–1900 rpm (21 steps)
Feed Rate: 0.047–2 mm/rev (12 steps)
Motor Power: 11 kW
Power Connection: 380 V, 50 Hz, 15 kW
Machine Length: 2720 mm
Machine Width: 1170 mm
Machine Height (max): 3770 mm
Transport Height with Motor: 3500 mm
Transport Height without Motor: 3250 mm
Machine Weight: 6.3 t

Equipped With
Right/Left Spindle Rotation via Lever Switch
Hydraulic Gear Shift for Spindle Speed and Feed
Hydro-Mechanical Central Clamping
Motorized Arm Elevation
No Coolant System
Machine Lamp
Operating Manual
