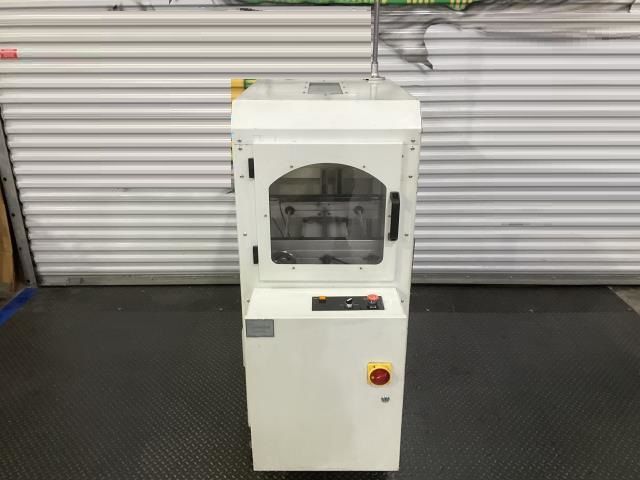

CTI WIET-.6M-0640

Vintage : JUN 2000
Left to Right Board Flow
20" Max Board width

Specifications
CTI Wave Input Elevator Tilt Conveyor:

STANDARD FEATURES:
• Edge Belt Conveyor
• Receives PCB L evel, Lowers and Tilts to Feed Wave
• Rail Extension for Close Positioning to
Wave Fingers
• Speed Control Slow Down for Previous and
Next Machine Speeds
• Adjustable 0 - 8 Degree Angle
• Board Edge Clear anc e = .100” (.060” min)
• Hand Crank Width Adjust = 2.0” - 18.0”
• 1/2” Steel Welded Frame
• Totally Enclosed With Interlocked Door

HEIGHT ADJUSTMENT:
Input End: 28” - 40”
Output End: 29” - 41”
